Subsea developments bring together wells, seabed hardware, pipelines, processing, controls and marine operations into a single production system that must work reliably for decades with very limited access. This intermediate refresher in subsea engineering is written for engineering graduates who want to consolidate and extend their knowledge across the whole system. Each section, from field layout and production hardware to wells, seabed processing, pipelines, materials and corrosion, controls and telemetry, reliability and intervention, and the ocean environment, includes worked problems. Instead of keeping the disciplines in separate boxes, the course keeps returning to how a decision in one, whether insulation, well design or control architecture, affects the others, and how standards from bodies such as API, DNV and ISO shape those choices.

Course at a glance: Duration 20 hours · Self-paced online · Level: Intermediate

What you will learn

Describe subsea field architectures and the main production hardware, and choose a layout for a field.
Explain well construction, well control and completion design for subsea wells.
Explain the principles behind sizing subsea pipelines for pressure containment, collapse, stability and installation.
Explain how subsea processing, controls and materials are selected.
Understand the basis of corrosion allowances, cathodic protection, umbilical power loss and system reliability and availability.
Plan subsea intervention and marine operations within weather, vessel and human limits.
Apply the main industry standards named in the course, such as API, DNV and ISO, to subsea design decisions.

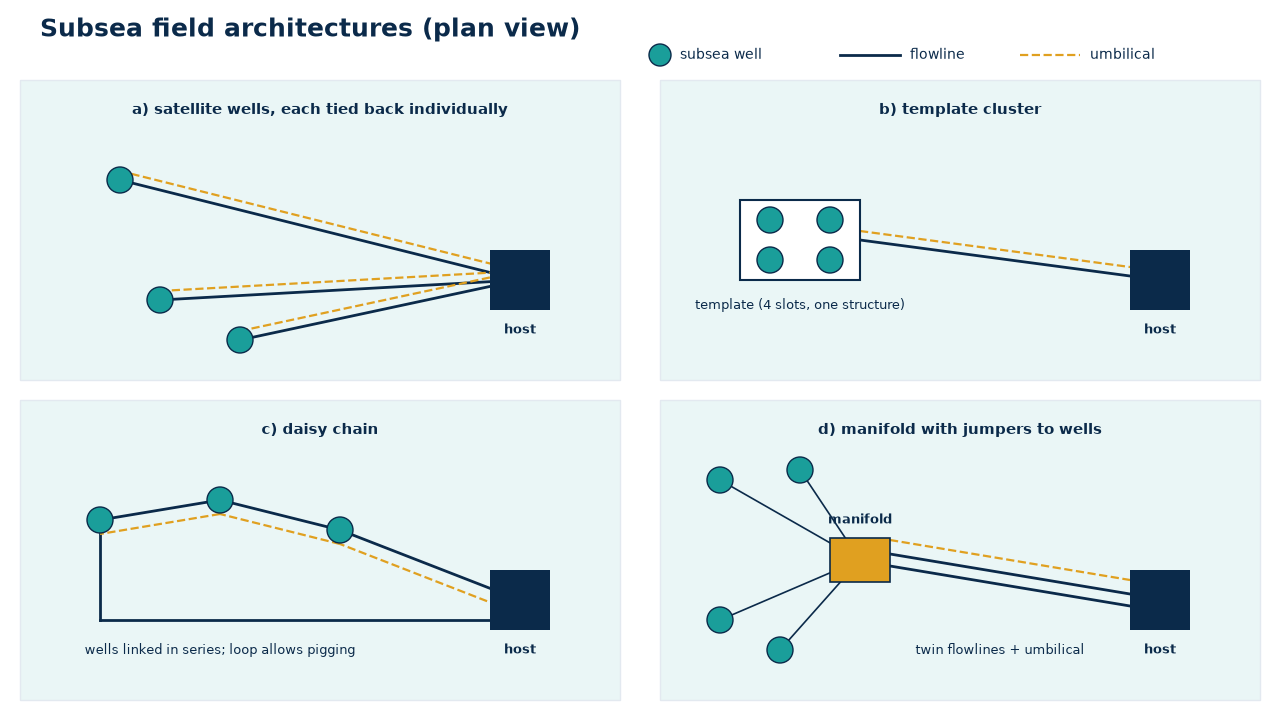

Comparison of subsea field architectures — Diagram by Oceans Technology

Inside the course: a high-level summary, section by section.

Field architecture and production hardware

First comes the layout of wells, manifolds, flowlines, umbilicals and risers that connects reservoir and host. This layout is settled early and has a large influence, since it locks in much of the capital spend and how flexibly the field can be operated later. Satellite wells, templates, clusters and manifold-based layouts are compared, along with the trees, manifolds, jumpers and connectors that make up the production hardware. Worked problems show how thermal performance, distance to host and future tie-in requirements influence the choice, and how sensitivity checks reveal whether a recommendation is robust or depends on a single judgement. A key insight is that a seemingly secondary detail, such as the condition of a pipeline’s insulation, can change the whole tie-back decision because it changes how quickly the produced fluid cools.

Wells

The wells section covers rig types, blowout preventers and well control. It explains how hydrostatic pressure from the drilling fluid balances formation pressure, how a kick develops when that balance is lost and how BOP ratings are checked against the worst credible case. Barriers are described as envelopes made of one or more elements that stop uncontrolled flow, with operations relying on barriers that are independent and verified by testing. Well fluids and their rheology, cementing and the role of casing, and completion design, including tubing, packers and the factors that govern well productivity, complete the picture.

Processing and facilities

Subsea processing moves functions such as separation, boosting and water handling from the host to the seabed. The course explains the hardware involved, why it can extend field life or enable long tie-backs, and the challenges of power supply, reliability and maintenance. Control, integrity management and end-of-life considerations, including decommissioning, are discussed as part of the facility life cycle.

Pipelines

The pipeline section establishes the design basis, defining fluids, pressures, temperatures, design life and environmental data. Pipe stress and failure modes are explained, including pressure containment, external collapse, local buckling and the interaction between them. Installation loads and integrity management through the life of the line are discussed, and a flowline design note illustrates how a design is documented and justified against code requirements. The underlying principle is that wall thickness and material choice must satisfy every governing limit state, not just the most obvious one.

Materials and corrosion

Subsea materials, carbon steels, corrosion-resistant alloys, clad and lined pipe and polymers, are compared for strength, corrosion resistance and cost. Corrosion mechanisms in seawater and in produced fluids are explained, together with the logic of corrosion allowances. Cathodic protection with sacrificial anodes is presented as the main defence for external surfaces, and the course explains how anode requirements depend on exposed area, coating breakdown and design life.

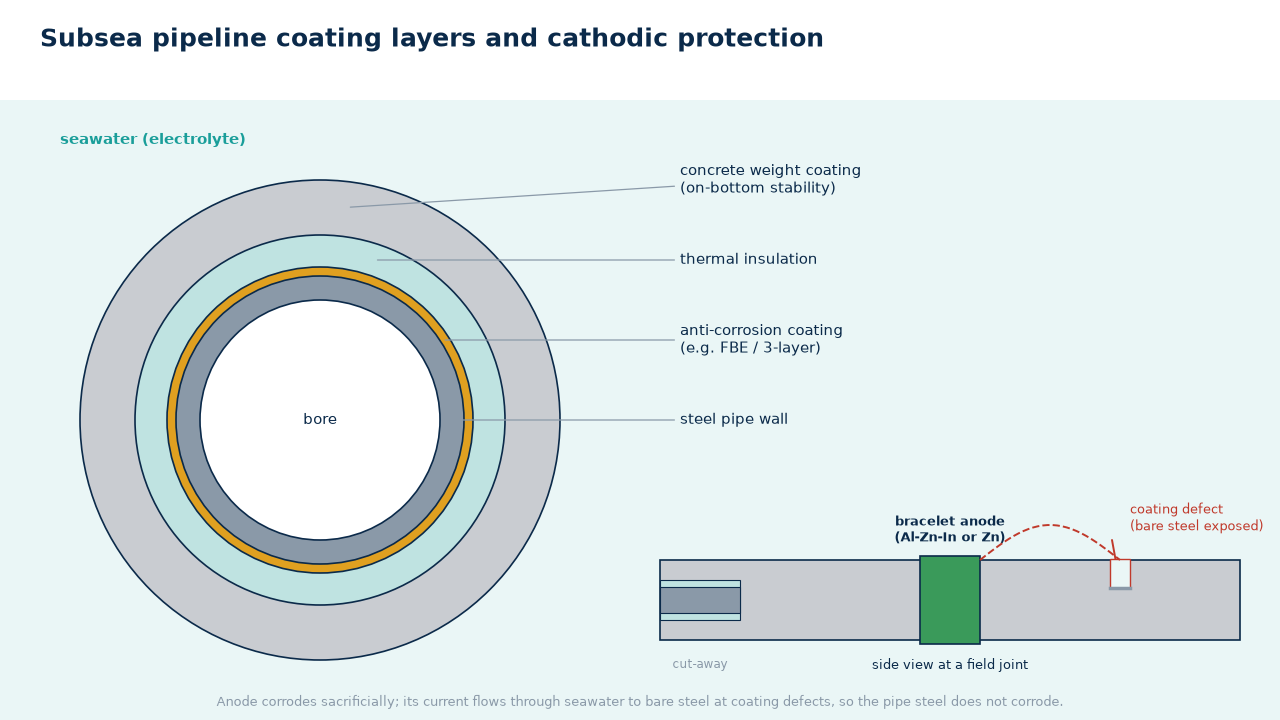

Subsea pipeline coating layers and cathodic protection — Diagram by Oceans Technology

Control systems and telemetry

Subsea control systems range from direct hydraulic to electro-hydraulic multiplex and all-electric architectures. The course explains how umbilicals carry hydraulic fluid, chemicals, power and communications, why power loss along long umbilicals matters, and how telemetry and safety integrity requirements shape the system design, including the separation of process control from safety functions.

Reliability and intervention

Because subsea equipment is hard to reach, reliability and availability are central design targets. The course introduces reliability concepts, failure rates, redundancy and availability, and shows how system architecture affects the probability of lost production. Intervention options, from ROV work through light well intervention vessels to rig-based workovers, are compared for capability, cost and weather sensitivity.

The ocean environment and operability

The final technical section examines waves, currents and weather as constraints on marine operations. Operability analysis compares vessel and equipment limits with the expected metocean conditions to estimate weather windows, and human factors, fatigue, competence and communication, are treated as part of safe operations. An intervention plan exercise asks learners to combine these factors into a practical, defensible plan.

How the disciplines connect

The course is structured so that each section builds on the previous ones, and the worked problems deliberately cross discipline boundaries. Water depth sets the hydrostatic pressure that governs pipeline collapse and hardware ratings; produced fluid temperature and composition drive insulation, materials and corrosion choices; the distance to host determines whether a direct hydraulic control system is practical or whether multiplex or all-electric architecture is needed, and how much power is lost along the umbilical; and the reliability of each component, combined with the cost and weather sensitivity of intervention, determines whether redundancy is worth its price. Standards such as those from API, DNV and ISO are introduced as the framework within which these trade-offs are made and documented, rather than as checklists to be followed blindly.

This integrated view is the main purpose of a refresher. Many engineers specialise early in one area of subsea work; revisiting the full system helps them understand the constraints their colleagues face, spot inconsistencies between discipline assumptions and contribute more effectively to concept selection, design reviews and operations planning. The section quizzes and worked problems provide a structured way to test that understanding across all of the topics.

Why this matters in practice

Subsea projects reward engineers who can see the whole system. Whether working in design, operations or integrity management, an engineer who understands how wells, hardware, pipelines, materials, controls and marine operations interact can identify risks earlier, ask better questions of specialists and make decisions that hold up over the life of a field.

Key takeaways

You leave able to choose a subsea field layout, explain well control and completion design, understand pipeline limit states, select materials and corrosion protection, describe control and telemetry systems, reason about reliability and intervention, and plan marine operations within environmental and human limits.

How you study

The course is delivered fully online and is self-paced, so you can fit roughly 20 hours of study around professional commitments. Lessons combine clear explanation with examples, diagrams and short interactive checks.

Course contents

Subsea Systems: Outcomes and Topics; Checking Your Understanding; Subsea Field Architecture; Subsea Production Hardware; Subsea Systems Worked Problems
Wells: Section at a Glance; Outcomes and Topics; Checking Your Understanding; Rig, BOP and Well Control; Well Fluids and Cement; Completion Design; Wells Worked Problems
Facilities: Section at a Glance; Outcomes and Topics; Checking Your Understanding; Processing and Hardware; Control, Integrity and End of Life; Facilities Worked Problems
Subsea Pipelines: Section at a Glance; Outcomes and Topics; Checking Your Understanding; Pipeline Design Basis; Pipe Stress and Failure; Installation and Integrity; Pipelines Worked Problems; Flowline Design Note
Materials and Corrosion Science: Section at a Glance; Outcomes and Topics; Checking Your Understanding; Subsea Materials; Corrosion and Cathodic Protection; Corrosion Worked Problems
Control and Telemetry Systems: Section at a Glance; Outcomes and Topics; Checking Your Understanding; Subsea Control Systems; Telemetry and Safety Integrity; Controls Worked Problems
Subsea Reliability and Intervention: Section at a Glance; Outcomes and Topics; Checking Your Understanding; Subsea Reliability; Subsea Intervention; Reliability Worked Problems
The Oceans, Operability and Humans in the Ocean: Section at a Glance; Outcomes and Topics; Checking Your Understanding; The Ocean Environment; Operability and Human Factors; Oceans Worked Problems; Intervention Plan
Summary: Key Takeaways

Who this course is for

This intermediate refresher is for engineering graduates and practising engineers in subsea, offshore, pipeline, mechanical and petroleum engineering who want a structured review of subsea systems. Learners should hold an engineering degree or have comparable experience, and be comfortable with basic fluid mechanics, statics and strength of materials.

Frequently asked questions

How long does Subsea Engineering take?
The course is designed for about 20 hours of study. It is self-paced and fully online, so you can spread it over a few weeks or complete it more quickly.

What is covered?
The course is organised into sections, moving from foundations to applied methods, as summarised above.

Is there material to keep after the course?
Yes. The course material remains a useful reference for later work.

Can I record this study for my own professional development?
Yes. The course notebook includes a self-assessment of the course objectives before and after study, a reflection page and a learning log, which you can use to keep your own record of professional development.
