Subsea pipelines carry oil, gas and water between wells, platforms and shore, often for decades and in places where repair is difficult and expensive. This self-paced introduction to subsea pipelines deals with field layout and design, how lines are installed, the materials and manufacture of line pipe, single-phase hydraulic sizing and wave mechanics, finishing with a survey of the advanced topics behind integrity, fatigue and on-bottom stability checks. It begins with transport options and the characteristics that make subsea pipelines distinctive, including the historical example of Operation PLUTO, then examines field layout, route selection and the design process. S-lay, J-lay, reeling and towing are compared as installation methods, and the material side covers carbon-manganese steel, grades and standards, how the steel is made and how pipe is formed. Hydraulic design and flow assurance issues lead into a sizing exercise, and a substantial section on waves explains why ocean waves matter for pipelines and how linear wave theory describes them.
Course at a glance: Duration 20 hours · Self-paced online · 8 sections, 38 lessons, a 142-page downloadable course book
What you will learn
- Explain the role, layout and design process of subsea pipeline systems.
- Identify the factors that govern offshore and nearshore route selection.
- Compare S-lay, J-lay, reel-lay and pull-and-tow installation methods and their trade-offs.
- Identify key material standards, steel properties and pipe manufacturing routes used for subsea line pipe.
- Apply basic hydraulic design concepts to single-phase pipeline sizing decisions.
- Explain core wave-mechanics concepts, including regular and irregular waves, Airy theory assumptions and depth regimes.
- Recognise the advanced design topics that shape structural integrity, fatigue and on-bottom stability assessments.
Inside the course: a high-level summary, section by section.
Why subsea pipelines matter
The course opens by comparing transport options for hydrocarbons and other fluids, pipelines, tankers and other systems, and explaining when pipelines are preferred. Subsea pipelines share distinctive characteristics: they are long, operate under high pressure, are exposed to the marine environment, are difficult to inspect and hard to repair. Such characteristics actively drive the design, rewarding robustness, strict quality control and cautious early decisions. The wartime Operation PLUTO pipelines across the English Channel are used to illustrate the long history of subsea pipelines and the ingenuity involved.
Field layout, route and design process

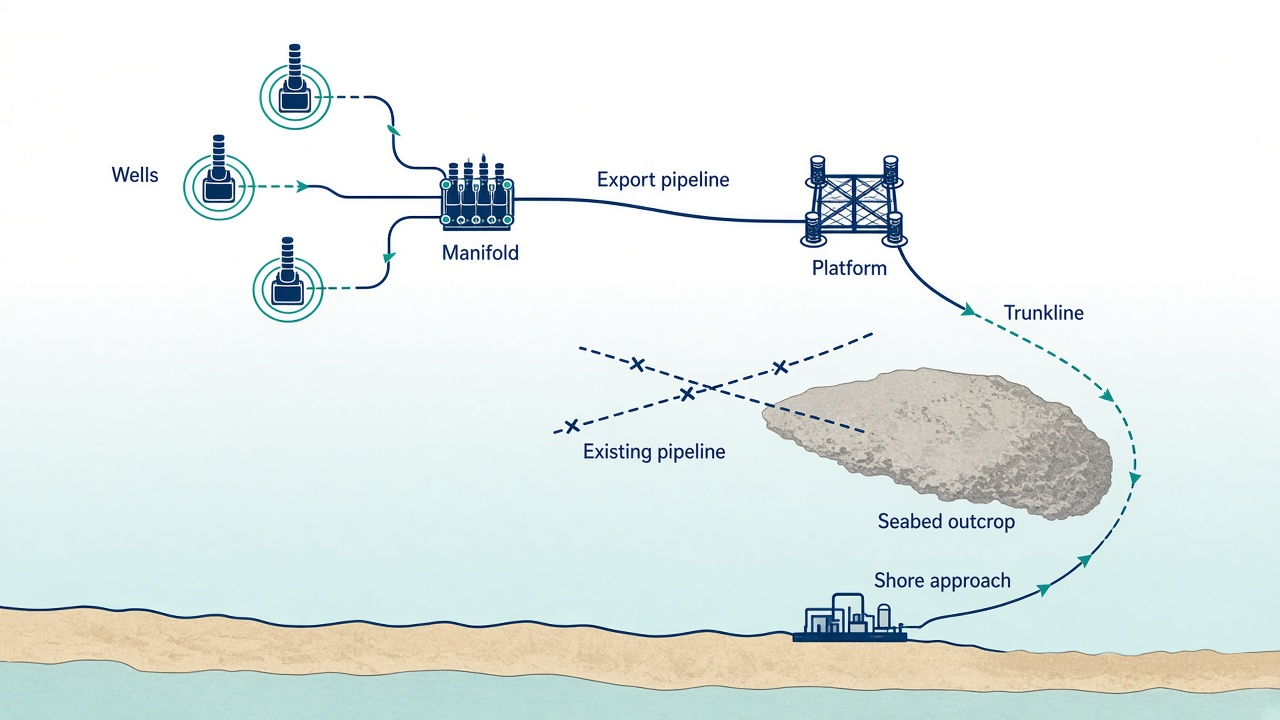

Field layout connects wells, manifolds, platforms and shore facilities, and the course explains how flowlines, export lines and trunklines are arranged. Choosing a route means trading off length, seabed, constructability, safety, crossings of existing assets and environmental effects, with additional limits close to shore where coastal processes dominate. The design process is outlined as a sequence of stages from concept through detailed design, linking hydraulic, mechanical, stability and installation considerations.
Installation methods

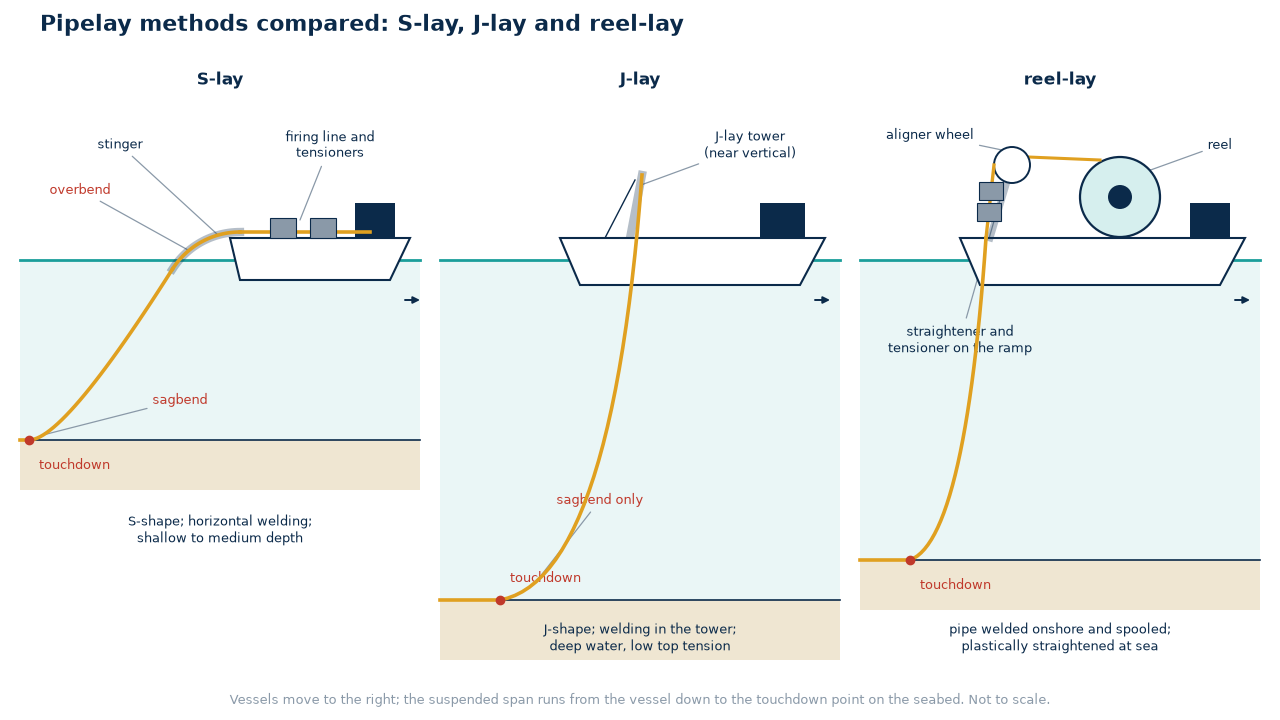

Installation has a large influence on pipeline design. S-lay welds pipe horizontally on the vessel and lowers it over a stinger, forming an S-shaped curve to the seabed; it is fast and widely used in shallow to moderate depths. J-lay welds pipe in a near-vertical tower, suiting deep water where the suspended pipe would otherwise be heavily strained. Reel-lay spools continuous pipe onto a reel onshore and unreels it offshore, offering rapid installation for smaller diameters but imposing plastic strain on the pipe. Pull-and-tow methods fabricate pipelines onshore and pull or tow them into position, useful for shore approaches and bundles. The trade-offs between speed, depth capability, diameter range and pipe stress are explained.
Line-pipe materials and manufacture
Most subsea pipelines use carbon-manganese steel. The course explains the relevant standards and grades, strength requirements, including yield and tensile strength and toughness, and how these relate to design. Steelmaking routes affect cleanliness and properties, and pipe fabrication methods, seamless, longitudinally welded and electric resistance or high-frequency induction welded, are compared for their dimensional tolerances, cost and suitability.
Hydraulic design
Hydraulic design aims to deliver the required flow with acceptable pressure drop while managing flow assurance issues such as hydrates, wax, corrosion and erosion. Design software is introduced, and single-phase flow principles are explained, including how pressure drop depends on flow rate, diameter, roughness and fluid properties. Pressure-drop modelling leads into a sizing exercise, in which learners consider how diameter choice balances capital cost, pressure capability and operational flexibility, and a sizing decision is reached through engineering reasoning.
Wave mechanics
Waves matter for pipelines because they impose hydrodynamic loads on the pipe during installation and, in shallow water, on the seabed. The course explains how waves form under wind action, then describes regular waves through height, period, wavelength and celerity, and irregular waves as the realistic sea state described statistically. Airy, or linear, wave theory is presented with its assumptions, small amplitude, inviscid and irrotational flow, and depth regimes, deep, intermediate and shallow, are explained in terms of how wave kinematics change with depth. The velocity potential is introduced as the mathematical foundation of linear theory, and practice problems reinforce the concepts.
Advanced design topics
The final technical section maps the advanced topics that follow from this introduction: wall thickness design for pressure containment and collapse, on-bottom stability under waves and currents, free-span assessment and vortex-induced vibration, fatigue, thermal expansion and buckling, and installation analysis. These topics shape structural integrity and long-term reliability, and learners finish with a clear picture of how they fit into the overall design.
How the topics fit together
Each section of the course feeds into the next. The route defines the water depths, seabed conditions and environmental exposure; these, together with the required flow, determine diameter and wall thickness; the diameter, wall thickness and depth constrain which installation methods are feasible; and wave and current conditions influence both installation and on-bottom behaviour. Material selection must satisfy all of these demands while remaining manufacturable at acceptable cost. Recognising these interdependencies early is what allows a pipeline project to avoid late, expensive redesign, and it is the main reason that experienced pipeline engineers spend so much effort on the concept stage.
Why this matters in practice
Subsea pipelines are long-lived, high-consequence assets. Engineers who understand layout, route selection, installation, materials, hydraulics and wave loading can contribute to concept selection, communicate with specialists and appreciate the reasons behind design codes and practices. The course provides a strong foundation for further study of pipeline design.
Key takeaways
You leave able to explain subsea pipeline system layout and design, compare installation methods, identify line-pipe materials and manufacturing routes, carry out basic hydraulic sizing, describe wave mechanics relevant to pipelines and recognise the advanced design topics that follow.
How you study
The course is delivered fully online and is self-paced, so you can fit roughly 20 hours of study around professional commitments. Lessons combine clear explanation with examples, diagrams and short interactive checks, and the main sections end with graded quizzes (6 in total) so you can confirm you can apply each method before moving on. A 142-page course book can be downloaded and printed for offline reading and later reference.

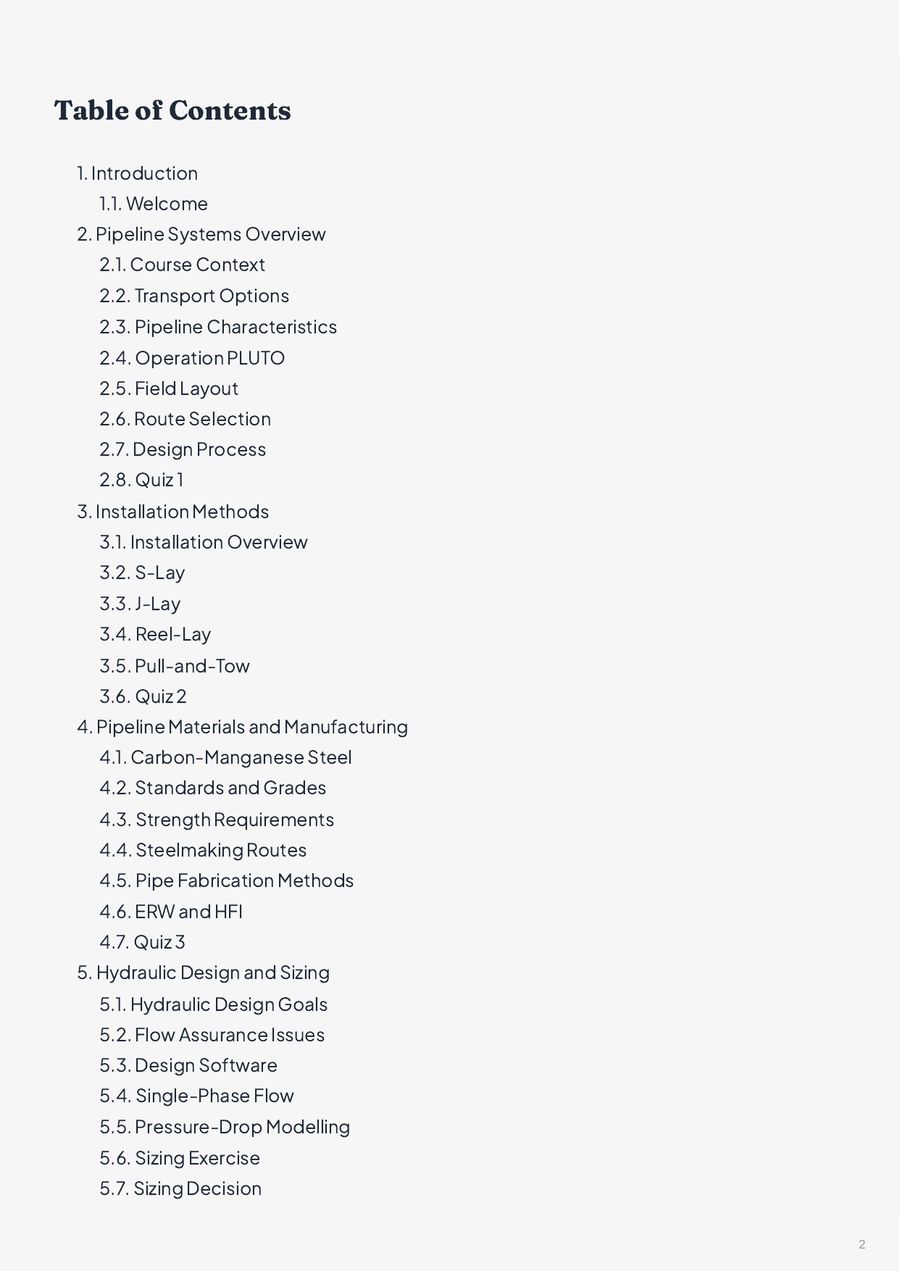

Course contents
- Pipeline Systems Overview: Course Context; Transport Options; Pipeline Characteristics; Operation PLUTO; Field Layout; Route Selection; Design Process
- Installation Methods: Installation Overview; S-Lay; J-Lay; Reel-Lay; Pull-and-Tow
- Pipeline Materials and Manufacturing: Carbon-Manganese Steel; Standards and Grades; Strength Requirements; Steelmaking Routes; Pipe Fabrication Methods; ERW and HFI
- Hydraulic Design and Sizing: Hydraulic Design Goals; Flow Assurance Issues; Design Software; Single-Phase Flow; Pressure-Drop Modelling; Sizing Exercise; Sizing Decision
- Wave Mechanics: Why Waves Matter; Wave Formation; Regular Waves; Irregular Waves; Airy Assumptions; Depth Regimes; Velocity Potential; Practice Problems
- Advanced Topics Overview: Source Limitation Notice; Day 2 Topic Map; Advanced Outcomes
- Summary: Key Takeaways
Who this course is for
This course is for engineering graduates and early-career engineers in offshore, subsea, civil, mechanical and pipeline engineering who need a structured introduction to subsea pipeline systems. It also suits professionals moving into the subsea sector. Basic fluid mechanics and engineering mathematics are assumed.
Frequently asked questions
How long does Introduction to Subsea Pipeline Systems take?
The course is designed for about 20 hours of study. It is self-paced and fully online, so you can spread it over a few weeks or complete it more quickly.
What is covered?
The course is organised into 8 sections with 38 lessons, moving from foundations to applied methods, as summarised above.
Is there material to keep after the course?
Yes. A downloadable 142-page course book accompanies the lessons for offline reading and later reference.
How is progress checked?
Each main section closes with a graded quiz (6 in total). The quizzes test understanding of the concepts and methods explained in the lessons rather than memorisation, and you can review the relevant lessons before attempting them.
Can I record this study for my own professional development?
Yes. The course notebook includes a self-assessment of the course objectives before and after study, a reflection page and a learning log, which you can use to keep your own record of professional development.
Duration: 20 hours
Related courses: D09 – Marine Pipelines; F02 – Sub Sea Engineering; D15 – Pipelines, Moorings, Umbilicals and Risers; D02 – Soil Mechanics Applications
Enrol
Study at your own pace and work through the full course material, worked examples and section quizzes. Enrol in F01 – Introduction to Subsea Pipeline Systems →
