Pipelines, mooring lines, umbilicals and risers all hang or lie in the sea as slender, flexible lines whose shape and tension are governed by weight, buoyancy, current drag and end conditions. This course covers static catenary analysis for subsea engineering systems, developing the methods needed to obtain a first design picture of these lines before detailed dynamic analysis. It explains why the methods matter even in an age of commercial software, then develops elemental equilibrium for a line element, the weight-only catenary with geometry, tension and curvature limits, the drag-only formulation with Pode’s cable functions and tables, and the relationships between vessel surge and heave and top-end tension using design charts and an equations sheet. Applied cases cover flexible risers and buoys, pipelines and spread moorings, umbilicals and transponders, and the course closes with a CALM buoy mooring and flexible-riser feasibility design task.
Course at a glance: Duration 20 hours · Self-paced online · Level: Intermediate · 8 sections, 29 lessons, a 109-page downloadable course book
What you will learn
- Explain why static catenary analysis remains essential alongside commercial software.
- Classify subsea line problems by catenary assumption, current regime and governing load case.
- Derive elemental equilibrium for a line and apply weight-only catenary equations to geometry, tension and curvature limits.
- Apply drag-only formulations and Pode’s cable functions to lines in current.
- Relate vessel surge and heave to top-end tension using design charts and an equations sheet.
- Evaluate which static method best fits risers, pipelines, moorings, umbilicals and transponder lines.
- Scope a preliminary CALM buoy mooring and flexible-riser feasibility design from a technical brief.
Inside the course: a high-level summary, section by section.
Why the methods matter
The course begins by explaining why static catenary analysis still matters. Commercial static and dynamic software assumes that the user already understands the underlying principles. Static catenary calculations give a first design picture for pipelines, moorings, umbilicals and risers, help engineers set up and check software models and support early feasibility decisions. They are sometimes dismissed as academic, but in practice they are the entry point to more detailed work and a vital sanity check on its results.
The weight-only catenary
The analysis starts with the equilibrium of a small element of line, considering weight, buoyancy, tension and hydrodynamic drag. For the first case, drag terms are eliminated, leaving weight as the driver of the force balance. The resolved horizontal and vertical tension components describe the line, and the classic catenary equations give its shape, suspended length, tension along the line and the position of the touchdown point. Curvature is particularly important for pipes and risers, because excessive bending at the sagbend or touchdown can overstress the line. The course shows how curvature and allowable bending limits relate to line geometry and tension, and worked examples apply the method to typical problems.
Lines in current: drag-only formulation
For lines that are nearly neutrally buoyant, such as some umbilicals, cables and instrumentation lines, current drag rather than weight governs the shape. The drag-only formulation treats the line as shaped by hydrodynamic forces, and a neutrally buoyant example illustrates the behaviour. Pode’s cable functions provide a classical solution for lines in uniform current, and the course explains how to use Pode’s tables to obtain shape and tension, a method that remains useful for quick assessments.
Surge and heave relations
Floating vessels move, and their motions change line geometry and tension. Surge relations describe how horizontal offset changes the suspended length and tension of mooring and riser lines, while heave relations describe the effect of vertical motion. A design chart method allows engineers to estimate top-end tension and line angle for given offsets, and an equations sheet consolidates the formulas as a practical design aid.
Applied cases
The applied section works through realistic scenarios. Flexible risers connected to buoys show how buoyancy modules and mid-water arches create configurations such as lazy-wave risers. Pipeline installation and spread moorings demonstrate catenary methods for lay tension and anchor-leg design. Umbilical and transponder cases address light, drag-dominated lines. A tutorial problem-solving strategy helps learners decide which method best fits each scenario, how to set up the equations and how to check answers.
CALM buoy feasibility design

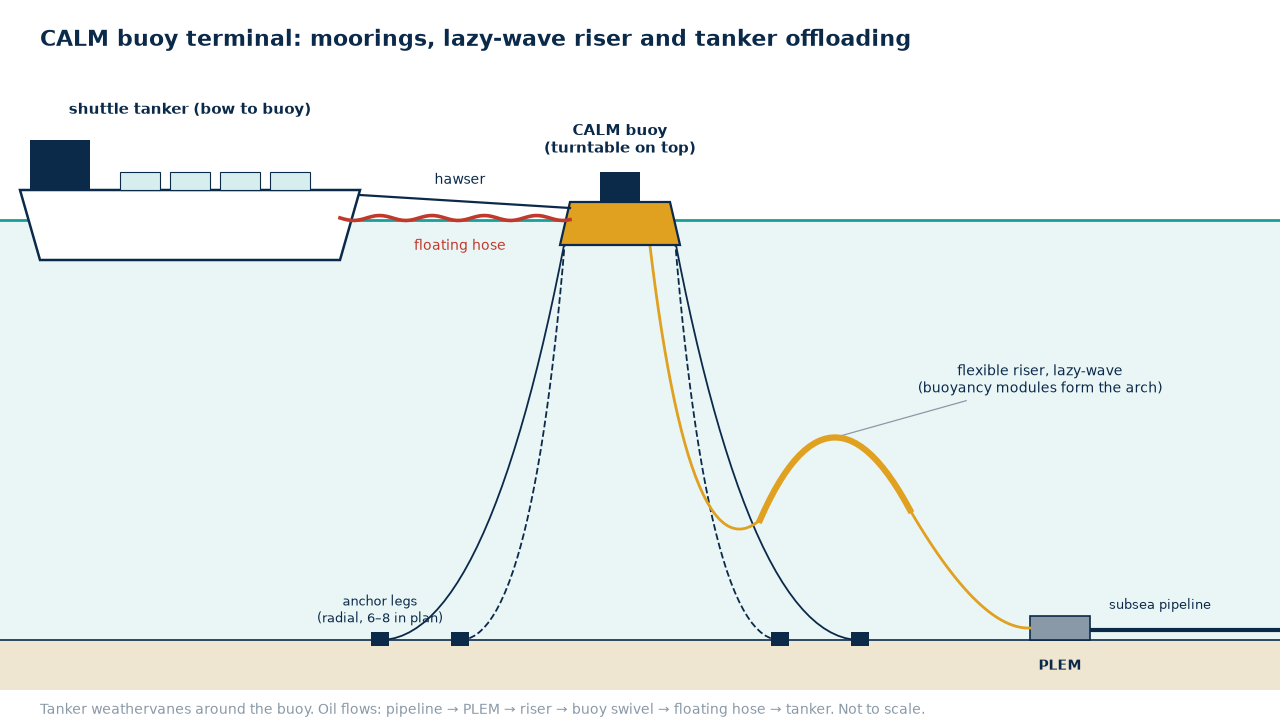

The final technical section applies everything to a design brief for a catenary anchor leg mooring buoy, used to load tankers offshore through floating hoses and flexible risers. The design brief and constraints are reviewed, concept options are compared, feasibility design logic is laid out, and learners carry out a feasibility task covering mooring leg configuration, riser arrangement and the key checks for tension, clearance and curvature.
How the methods fit together
The course presents the static methods as a toolkit. The weight-only catenary suits heavy lines such as chain moorings and steel pipelines; drag-only methods suit light, current-dominated lines; and surge and heave relations link both to vessel motions. Real lines often combine features of each, so the skill lies in recognising which effects dominate and which simplifications are acceptable for the decision at hand. Static results then provide boundary conditions and starting configurations for dynamic analysis, where wave-frequency vessel motions, line inertia and hydrodynamic damping are added.
Assumptions and their limits
Static catenary methods rely on simplifying assumptions: the line is perfectly flexible, its weight and drag properties are uniform along each segment, the seabed is flat and rigid at touchdown, and the current is steady. The course encourages learners to state these assumptions explicitly and to judge when they break down. Bending stiffness matters for large-diameter steel pipes near touchdown; multi-segment lines combining chain, wire and buoyancy elements must be treated piece by piece with continuity of tension and angle; and sheared current profiles may require numerical integration rather than closed-form functions. Recognising these limits is what allows a static result to be used with confidence, either as a design answer at feasibility stage or as a check on a more complete numerical model.
Why this matters in practice
Mooring, riser, umbilical and pipeline design all start with static configuration. Engineers who understand catenary behaviour can carry out early feasibility work quickly, set up software models correctly, interpret results and identify errors in input or output. This understanding is valuable in oil and gas, floating wind, aquaculture and subsea cable projects, where line systems are central to performance and safety.
Key takeaways
You leave able to classify subsea line problems, apply weight-only and drag-only catenary methods, use Pode’s functions, relate vessel motions to top-end tension with design charts and scope a CALM buoy mooring and riser feasibility design.
How you study

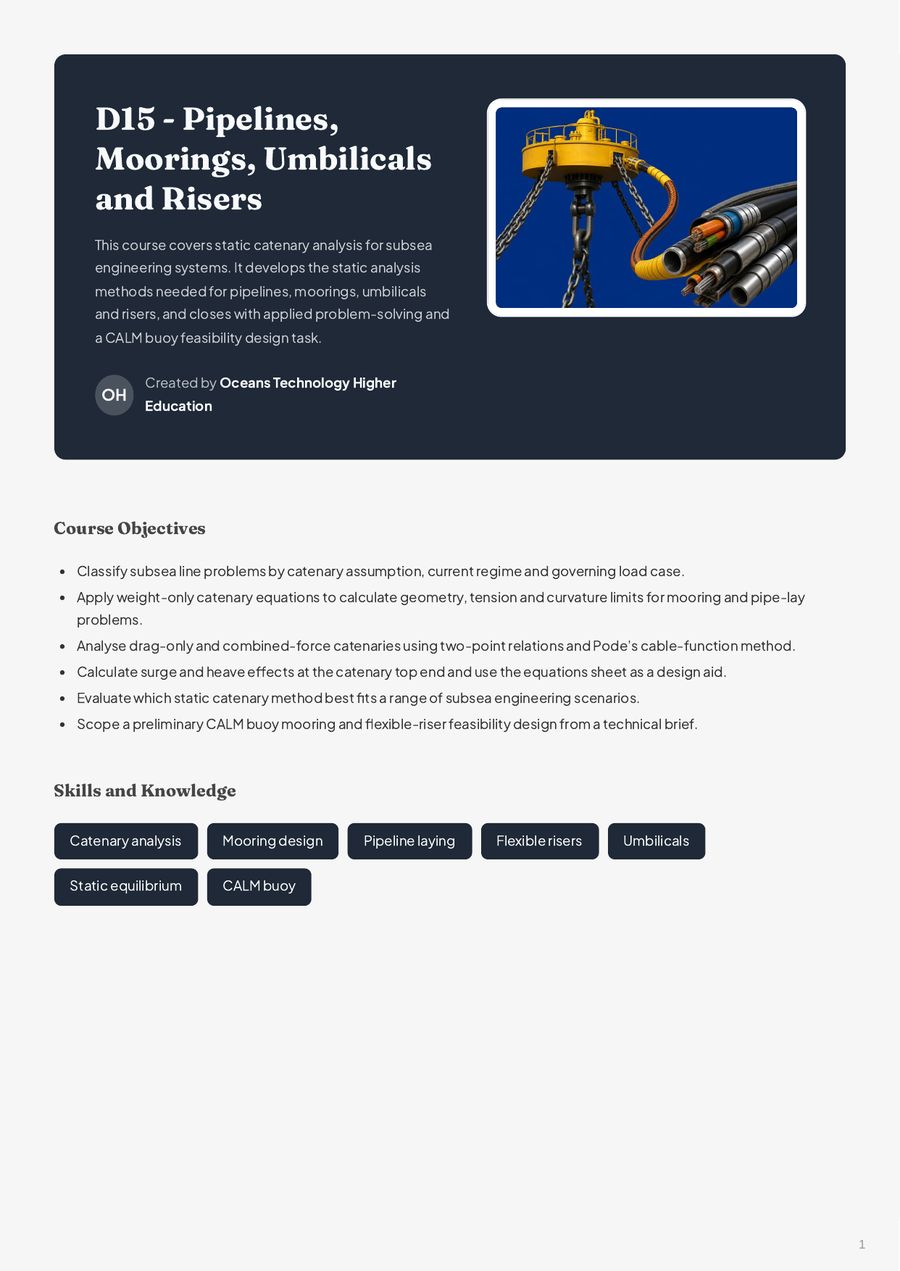

The course is delivered fully online and is self-paced, so you can fit roughly 20 hours of study around professional commitments. Lessons combine clear explanation with examples, diagrams and short interactive checks, and the main sections end with graded quizzes (6 in total) so you can confirm you can apply each method before moving on. A 109-page course book can be downloaded and printed for offline reading and later reference.
Course contents
- Introduction to Catenary Systems: Catenary System Basics; Why the Methods Matter
- Weight-Only Catenary Analysis: Elemental Equilibrium; Geometry and Tension; Curvature and Pipe Limits; Worked Case I Examples
- Drag-Only and Combined-Force Catenaries: Drag-Only Formulation; Neutrally Buoyant Example; Pode’s Cable Functions; Using Pode’s Tables
- Surge, Heave and the Equations Sheet: Surge and Heave Relations; Design Chart Method; Using the Equations Sheet
- Applied Tutorial Problems: Flexible Riser and Buoy; Pipeline and Spread Mooring; Umbilical and Transponder Cases; Tutorial Problem-Solving Strategy
- CALM Buoy Design Exercise: Design Brief and Constraints; Concept Selection; Feasibility Design Logic; CALM Buoy Feasibility Task
- Summary: Key Takeaways
Who this course is for
This intermediate course is for engineering graduates and practising subsea, offshore, mooring and pipeline engineers who need a solid grounding in static line analysis. It assumes an engineering degree or equivalent experience, with basic solid mechanics, statics and elementary fluid mechanics; familiarity with subsea line systems is helpful but not required.
Frequently asked questions
How long does Pipelines, Moorings, Umbilicals and Risers take?
The course is designed for about 20 hours of study. It is self-paced and fully online, so you can spread it over a few weeks or complete it more quickly.
What is covered?
The course is organised into 8 sections with 29 lessons, moving from foundations to applied methods, as summarised above.
Is there material to keep after the course?
Yes. A downloadable 109-page course book accompanies the lessons for offline reading and later reference.
How is progress checked?
Each main section closes with a graded quiz (6 in total). The quizzes test understanding of the concepts and methods explained in the lessons rather than memorisation, and you can review the relevant lessons before attempting them.
Can I record this study for my own professional development?
Yes. The course notebook includes a self-assessment of the course objectives before and after study, a reflection page and a learning log, which you can use to keep your own record of professional development.
Level: Intermediate
Duration: 20 hours
Related courses: D09 – Marine Pipelines; D14 – Design of Fixed and Floating Offshore Systems; D05 – Offshore Hydromechanics; D08 – Floating Structures
