Marine structural design becomes demanding quickly once buckling, reliability and modelling choices meet real environmental loading. This postgraduate course is built to help engineers handle that crossover with confidence. It begins with the core design relationships for beams, columns, beam-columns, plates and stiffened structures, and links them to first-order structural reliability concepts that turn uncertainty into a measurable safety margin. It then moves into finite element methodology for marine structures, covering idealisation, dynamics and non-linearity, wave loading models and post-processing, before examining element formulations, mapping and numerical integration, and the modelling judgement that separates reliable analyses from misleading ones. The course culminates in an applied stability assessment of a ring-stiffened cylindrical shell using the DNV RP-C202 methodology.
Course at a glance: Duration 20 hours · Self-paced online · 7 sections, 27 lessons, a 108-page downloadable course book
What you will learn
- Analyse beam bending, column and beam-column behaviour, and plate buckling using core design relationships.
- Explain how end restraint, effective length and welding residual stress affect buckling strength.
- Interpret structural reliability concepts and relate the safety index to probability of failure.
- Select appropriate finite element, dynamic and wave loading methods for different marine structures.
- Evaluate plane element formulations, mapping and integration, and key modelling checks.
- Choose post-processing approaches suited to the structure and the physics of the problem.
- Apply the DNV RP-C202 sequence to assess the stability of a ring-stiffened cylindrical shell.
Inside the course: a high-level summary, section by section.
Module framing and learning path
The course opens by setting out its learning outcomes and how they connect. Themes such as longitudinal strength, buckling of structural components, reliability and finite element application are presented as parts of one design discipline rather than separate topics. A recurring question is asked throughout: what assumption is being made here, and how does it affect the design or analysis method? The study path is modelled on an intensive teaching format, moving from theory through guided work on probabilistic concepts and finite element application to case studies and shell structures, and the assessment model explains how analytical and applied work are combined.
Buckling and reliability
The theoretical core begins with beam bending, including the effect of end restraint. Fixing the ends of a beam does not simply strengthen the supports; it redistributes bending between support and span and changes the peak demand the section must resist. That distinction is a modelling decision with real design consequences.
Columns and beam-columns are treated next. Effective buckling length depends on end conditions, and moving from pinned to fully fixed ends raises the critical stress substantially. In welded members, residual stress lowers the proportional limit used in inelastic buckling calculations, while stress relief can improve it. Beam-columns, which carry axial load and bending together, are governed by interaction checks that combine both effects. Plate buckling extends these ideas to two-dimensional panels, with boundary conditions, aspect ratio and loading type controlling the critical stress.

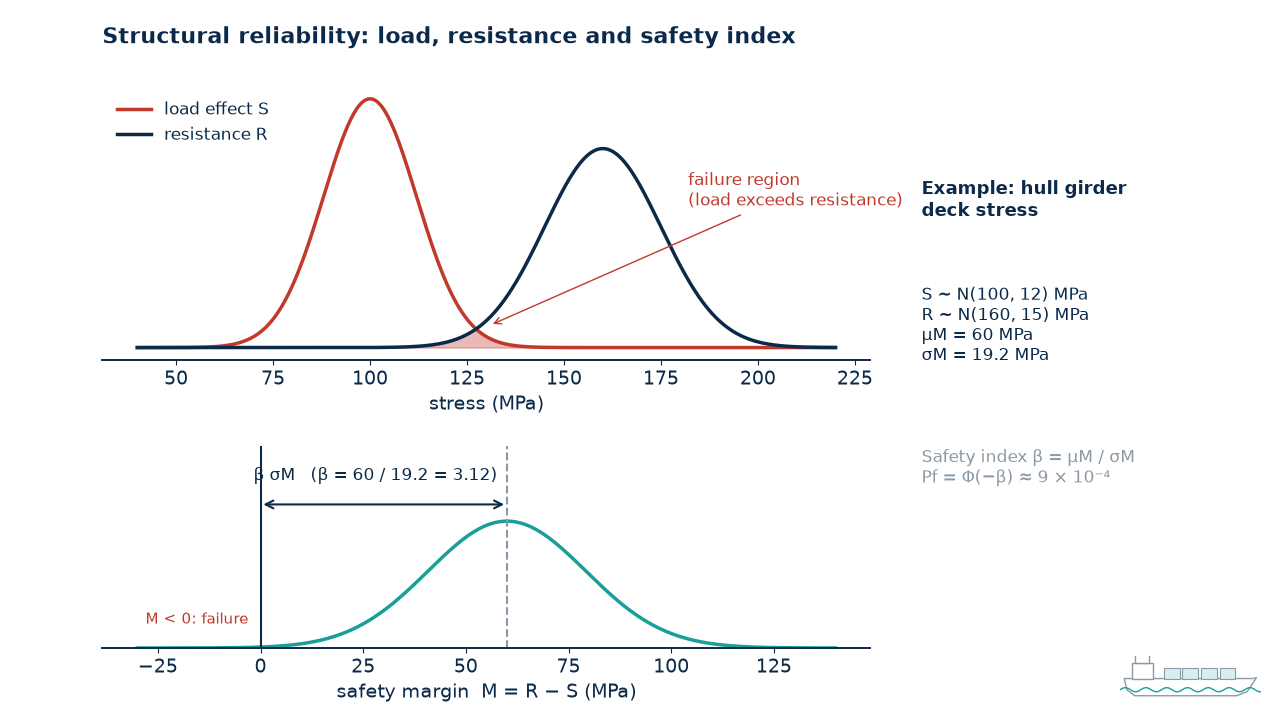

Structural reliability provides the framework for judging safety. Rather than relying solely on fixed safety factors, reliability methods treat loads, strengths and model accuracy as uncertain quantities. A modelling parameter compares actual measured behaviour with predicted behaviour, capturing model uncertainty. The safety index expresses how far the mean safety margin lies from failure in units of its standard deviation, and it is directly linked to the probability of failure. A worked example brings buckling and reliability together.
Finite element methodology
The FEA section starts from first principles: a continuous structure is replaced by a manageable idealisation, and that idealisation is only useful if it captures the behaviour that matters. Dynamics and non-linearity are introduced through the need to separate excitation from natural frequencies. For many marine structures, wave excitation is well below the structure’s own frequencies, but if wave loading approaches a structural frequency, the response can grow dramatically, so frequency separation is a primary design check. Geometric and material non-linearity are explained as essential for buckling and collapse analyses.
Wave loading models are matched to structure types. Slender cylindrical members in jackets are typically analysed with Morison loading and beam elements, followed by code-based joint checks, while large-volume floating structures such as semi-submersibles, tension leg platforms and spars require diffraction and radiation methods and more local shell detail. Post-processing methods are chosen to follow the structure and its physics, not habit: stress checks, buckling utilisation, fatigue damage accumulation using cumulative damage rules and response statistics each answer different questions.
Element formulations and modelling judgement
The fourth section looks inside the finite element method. Plane elements are compared, from constant-strain triangles, which are simple and robust but limited in strain representation, to linear-strain triangles and quadrilateral elements that capture bending and stress gradients more accurately. Mapping from natural to physical coordinates and numerical integration explain how element stiffness is calculated and why distorted elements or reduced integration can cause errors such as locking or spurious modes.
Modelling judgement ties this together. Key checks include element type and order, mesh density at stress concentrations, element shape quality, boundary conditions and load application. The aim is to make sure the model, not an artefact of the mesh, is producing the response. The course encourages simple verification habits, such as checking reactions against applied loads, comparing results with hand calculations or classical solutions, and running a coarser and a finer mesh to confirm that key results have converged. These habits catch most modelling errors before they reach a design decision.
Ring-stiffened shell assessment
The applied section is a structured assessment of a ring-stiffened cylindrical shell, a common component of offshore columns, pontoons, risers and submerged structures. Following the DNV RP-C202 methodology, the check sequence covers geometry and loading, shell buckling between frames, panel ring buckling, general instability of the shell and frames together, and the strength of the ring frames themselves. Result interpretation explains how utilisation ratios identify the governing mode and what design changes, such as frame spacing, frame size or shell thickness, are most effective. A worked example and a shell assessment exercise provide practice. Because ring-stiffened shells can fail in several interacting ways, the exercise also reinforces the broader lesson of the course: identify every credible failure mode, check each one with an appropriate method and let the governing mode guide the design.
Why this matters in practice
Offshore and marine structures often fail by instability rather than by simple overstress, and their analysis increasingly relies on finite element models whose credibility depends on the engineer’s judgement. Combining classical buckling theory, reliability thinking and disciplined FE practice allows engineers to produce analyses that are efficient, defensible and consistent with recognised codes, and to review the work of others critically.
Key takeaways
You leave with an integrated toolkit for advanced marine structural design: buckling theory for beams, columns and plates, reliability concepts for safety assessment, finite element methods matched to loading and structure type, and a code-based procedure for ring-stiffened shells.
How you study
The course is delivered fully online and is self-paced, so you can fit roughly 20 hours of study around professional commitments. Lessons combine clear explanation with examples, diagrams and short interactive checks, and the main sections end with graded quizzes (5 in total) so you can confirm you can apply each method before moving on. A 108-page course book can be downloaded and printed for offline reading and later reference.

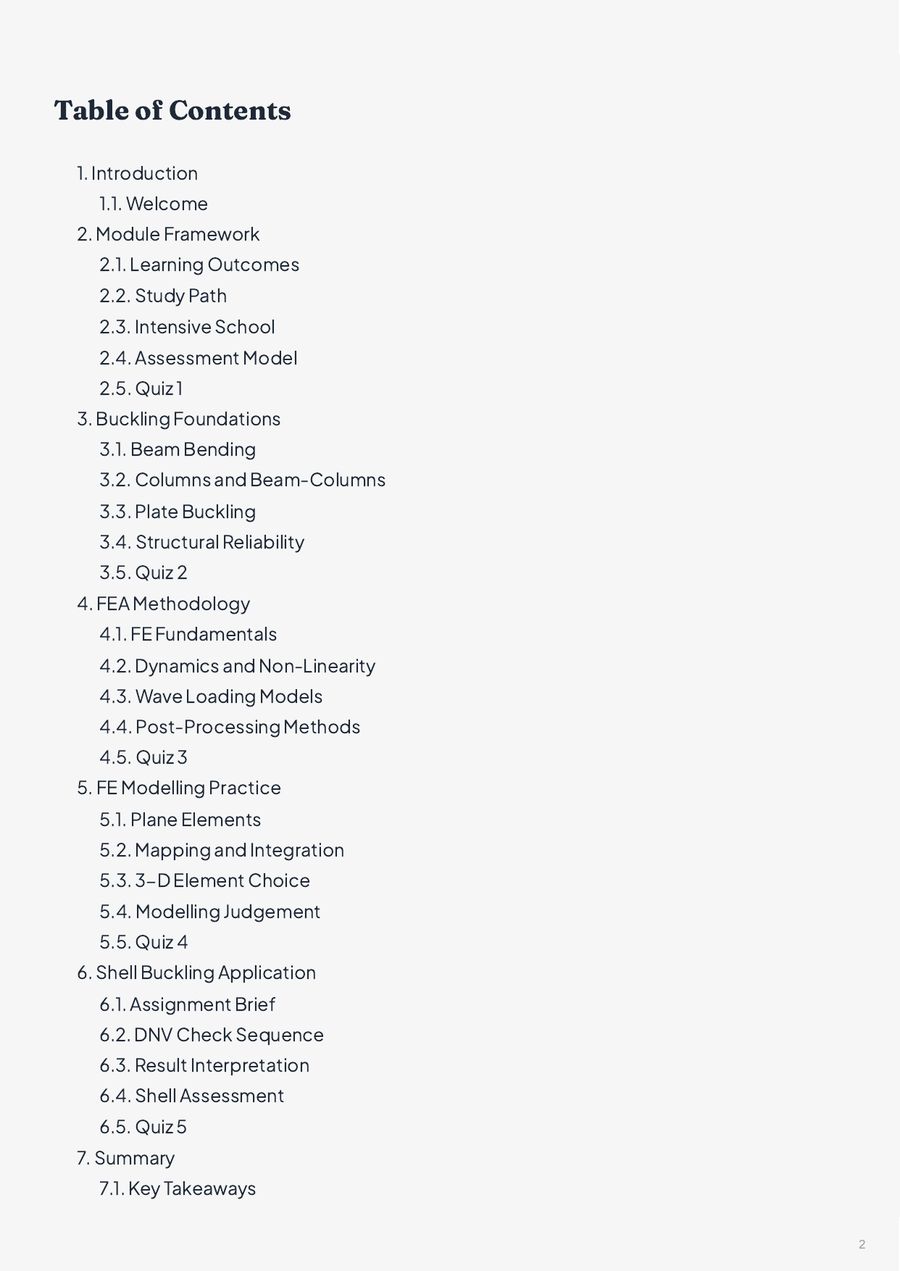

Course contents
- Module Framework: Learning Outcomes; Study Path; Intensive School; Assessment Model
- Buckling Foundations: Beam Bending; Columns and Beam-Columns; Plate Buckling; Structural Reliability
- FEA Methodology: FE Fundamentals; Dynamics and Non-Linearity; Wave Loading Models; Post-Processing Methods
- FE Modelling Practice: Plane Elements; Mapping and Integration; 3-D Element Choice; Modelling Judgement
- Shell Buckling Application: Assignment Brief; DNV Check Sequence; Result Interpretation; Shell Assessment
- Summary: Key Takeaways
Who this course is for
This postgraduate course is for engineering graduates and practising structural, naval and offshore engineers who carry out or review strength, buckling and finite element analyses of ships and offshore structures. It suits engineers moving from general structural engineering into marine and offshore work and those preparing for more advanced analysis responsibilities. A background in structural mechanics and some exposure to FEA is assumed.
Frequently asked questions
How long does Advanced Structural Design and Analysis take?
The course is designed for about 20 hours of study. It is self-paced and fully online, so you can spread it over a few weeks or complete it more quickly.
What is covered?
The course is organised into 7 sections with 27 lessons, moving from foundations to applied methods, as summarised above.
Is there material to keep after the course?
Yes. A downloadable 108-page course book accompanies the lessons for offline reading and later reference.
How is progress checked?
Each main section closes with a graded quiz (5 in total). The quizzes test understanding of the concepts and methods explained in the lessons rather than memorisation, and you can review the relevant lessons before attempting them.
Can I record this study for my own professional development?
Yes. The course notebook includes a self-assessment of the course objectives before and after study, a reflection page and a learning log, which you can use to keep your own record of professional development.
