The final part of the Naval Architecture and Ship Production Technology series brings together advanced ship structural behaviour and the core methods of shipyard production. It begins with structural stability: equilibrium and limit states, buckling modes, classical and energy-based analysis methods, effective length, initial imperfections and material non-linearity, leading to practical column and plate strength methods such as Perry-Robertson and Faulkner’s effective width approach. It then moves into the shipyard, covering the evolution of production methods, construction levels and block definition, design for production, lofting and plate development, material preparation, cutting and forming, welding imperfections and qualification, launching and docking calculations, and finally the commercial shipbuilding market and compensated gross tonnage. The result is a connected view of how structural design, production engineering and commercial context shape modern shipbuilding.
Course at a glance: Duration 20 hours · Self-paced online · Level: Advanced · 12 sections, 41 lessons, a 163-page downloadable course book
What you will learn
- Explain how structural stability concepts govern the buckling and ultimate strength of ship plates and columns.
- Distinguish bifurcation and limit-point instability and recognise the buckling modes relevant to ship structures.
- Compare classical, Galerkin, Rayleigh-Ritz and finite element approaches to stability analysis.
- Account for initial imperfections, residual stress and material non-linearity using Perry-Robertson and Faulkner methods.
- Describe block construction, construction levels and design-for-production principles.
- Outline lofting, plate development, cutting, forming and welding processes and their quality issues.
- Explain launching and docking phases and calculations, and use compensated gross tonnage to compare shipyard output.
Inside the course: a high-level summary, section by section.
Structural stability fundamentals
The course opens with the language of structural stability. Equilibrium can be stable, neutral or unstable, and limit states define the conditions at which a structure stops performing its intended function. Two broad types of instability are distinguished. Bifurcation, typified by the Euler column, occurs when the equilibrium path splits at a critical load and the member takes up a buckled form. In limit-point instability, the load-deflection path reaches a maximum and then falls, with no sudden branching. Identifying the relevant mode helps engineers read ultimate strength results, judge margins of safety and avoid assuming every instability behaves like a basic column.
Analysis methods and effective length
Classical analysis methods solve the governing differential equations for simple cases. Energy and residual methods extend this to more complex problems: the Rayleigh-Ritz method uses an assumed displacement shape and the principle of minimum potential energy, while the Galerkin method enforces orthogonality of the residual to trial functions. Both lead to eigenvalue problems for critical loads. Finite element analysis is presented as the modern general method, capable of handling complex geometry, boundary conditions and real structural details. Effective length links boundary conditions to buckling capacity, explaining why the same member can have very different strength depending on how its ends are restrained.
Imperfections and column strength
Real structures are never perfect. The course explains how initial out-of-straightness, residual stresses from welding and material non-linearity reduce strength below ideal predictions. Material behaviour is discussed from proportional limit and yield to the yield plateau, together with tangent modulus and reduced modulus theories and the Shanley model. Residual stress can cause early local yielding, which reduces the effective stiffness of a member long before its nominal yield stress is reached.

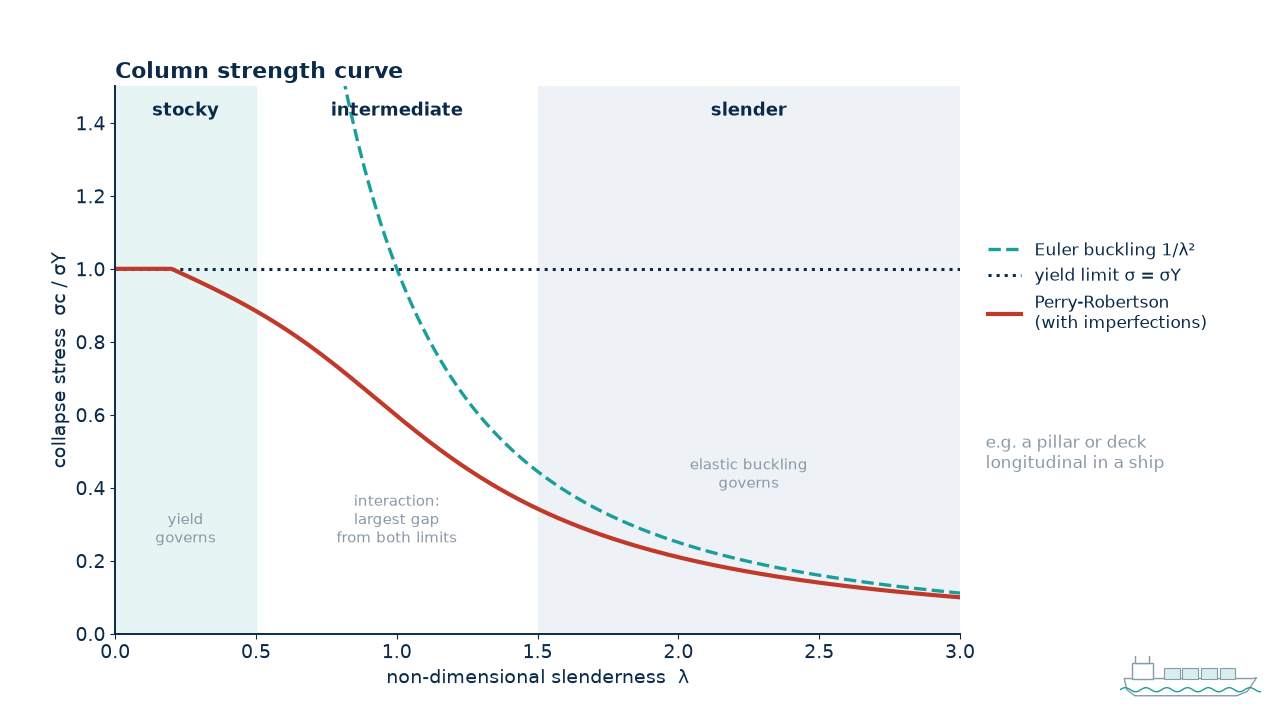

The Perry-Robertson method provides a practical way to calculate column collapse stress by treating an imperfect column as one that fails when the combined axial and bending stress at the extreme fibre reaches yield. Worked panel and column examples show how slenderness places a strut in the stocky, intermediate or slender range, and why struts in the intermediate range, where yielding and buckling interact, need particular care.
Plate strength and effective width
Ship plating behaves differently from columns because plates can carry load after initial buckling through redistribution of stress towards their supported edges. The Faulkner method captures this using an effective width concept, in which only part of the plate is assumed to carry stress at collapse. The course explains how effective width and associated reductions for imperfections and residual stress are applied, and how plate and stiffener strength combine in stiffened panels.
Production methods and design for production

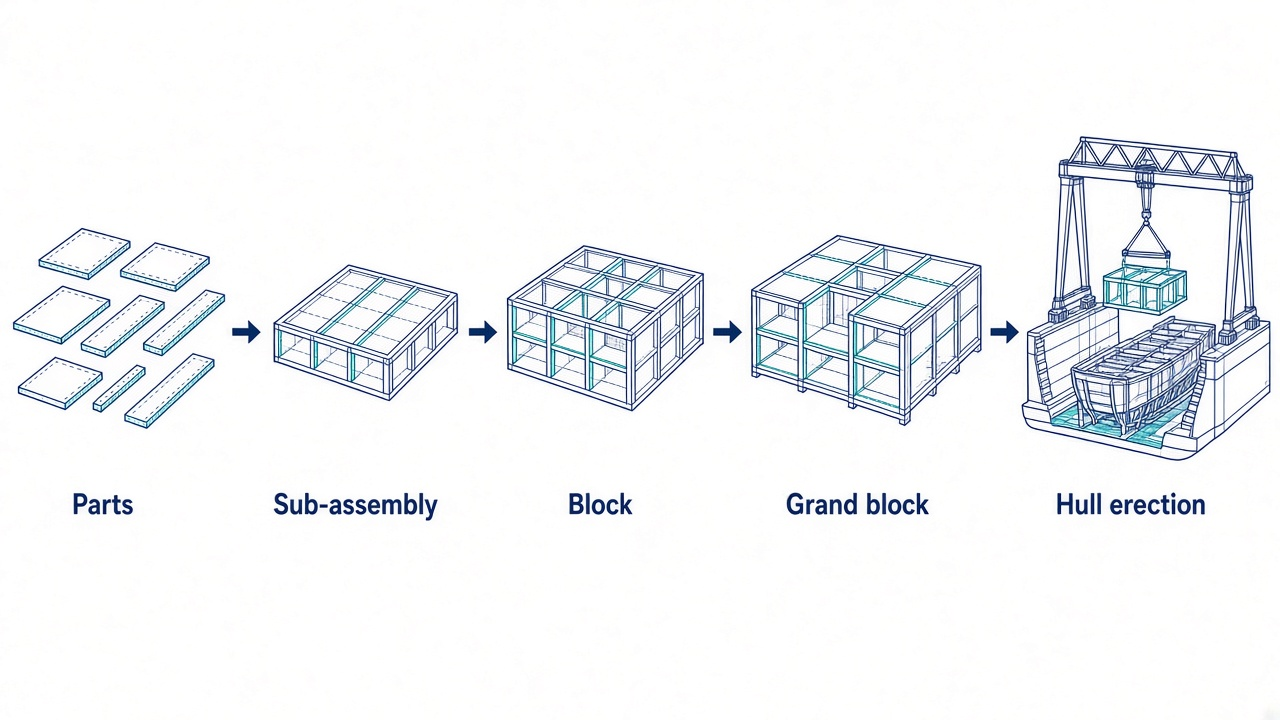

The production part begins with the evolution of shipbuilding methods, from building ships piece by piece on the berth with most outfitting after launch, to fabricating hull blocks in covered workshops and erecting them in dock, and on to integrated zone outfitting in which pipework, cabling and equipment are installed in blocks before erection. Five construction levels, from individual parts through sub-assemblies, blocks and grand blocks to hull erection, provide a framework for planning work. Block definition principles explain how block boundaries are chosen for weight, access, outfitting and accuracy. Design for production shows how simple choices, such as using corrugated panels instead of separate stiffeners, standardising details and providing access and staging points, reduce welding, parts and cost.
Lofting and fabrication
Lofting turns the designed hull surface into buildable plate shapes. The course explains why the hull must be faired and how curved shell plates are developed into flat templates. Geodesic development preserves the plate’s true shape well, while simpler alternatives such as the Flemish method trade some precision for ease. Material preparation, cutting and forming follow. Thermal cutting methods, including oxy-fuel, plasma, laser and arc-air gouging, each have a sweet spot for plate thickness, material, speed and quality, and mechanical forming methods shape plates by rolling and pressing.
Welding imperfections and qualification
Welding quality is essential to structural integrity. The course categorises weld imperfections into geometric defects, such as incomplete fusion, cracking and lamellar tearing, and metallurgical defects that alter the material properties near the weld. High-tensile steel qualification cases show why procedures and welders must be qualified for demanding materials, and a fabrication review assignment applies these ideas.
Launching, docking and the shipbuilding market
Launching and docking methods are compared by capacity, capital cost and flexibility. The phases of an end launch are explained, including the critical moments when the ship begins to pivot and when it becomes fully waterborne, together with docking calculations that check stability and loads as a ship settles onto blocks. A worked example brings these calculations together. The final section looks at industry sectors, market dynamics and other marine sectors, and explains compensated gross tonnage, which weights gross tonnage by ship type and size so that shipyard output and productivity can be compared fairly.
Key takeaways
You finish with an advanced understanding of how plates and columns buckle and collapse, how structural strength is assessed with practical methods, and how ships are planned, fabricated, welded, launched and docked within a commercial market.
How you study
The course is delivered fully online and is self-paced, so you can fit roughly 20 hours of study around professional commitments. Lessons combine clear explanation with examples, diagrams and short interactive checks, and the main sections end with graded quizzes (5 in total) so you can confirm you can apply each method before moving on. A 163-page course book can be downloaded and printed for offline reading and later reference.
Course contents
- Structural Stability Fundamentals: Equilibrium and Limit States; Buckling Modes
- Buckling Analysis Methods: Classical Analysis Methods; Galerkin and Rayleigh-Ritz; Effective Length
- Imperfections and Column Strength: Initial Imperfections; Material Non-Linearity; Perry-Robertson Method; Worked Panel Example
- Stiffened Panel Strength: Faulkner Method; Effective Width and Reductions
- Block Construction Methods: Production Method Evolution; Five Construction Levels; Block Definition Principles; Designing for Efficiency
- Lofting and Plate Development: Purpose of Lofting; Fairing the Hull Surface; Geodesic Development; Alternative Methods
- Fabrication Processes: Material Preparation; Cutting Processes; Mechanical Forming
- Welding Quality and HTS: Welding Imperfections; HTS Qualification Cases; Fabrication Review Assignment
- Launching and Docking: Methods and Capacity; Launching Phases; Despenhamento and Saudação; Docking Calculations
- Shipbuilding Markets and CGT: Industry Sectors; Commercial Market Dynamics; Other Marine Sectors; Compensated Gross Tonnage; CGT Calculation Assignment
- Summary: Key Takeaways
Who this course is for
This advanced course is for engineering graduates and practising engineers working in ship structures, shipbuilding production, yard planning, quality and survey. Prerequisites are an engineering degree or similar experience and Parts 1 to 3 of the series, or equivalent grounding in ship design, basic stability and structural mechanics such as beam bending and column buckling.
Frequently asked questions
How long does Naval Architecture and Ship Production Technology (Part 4 of 4) take?
The course is designed for about 20 hours of study. It is self-paced and fully online, so you can spread it over a few weeks or complete it more quickly.
What is covered?
The course is organised into 12 sections with 41 lessons, moving from foundations to applied methods, as summarised above.
Is there material to keep after the course?
Yes. A downloadable 163-page course book accompanies the lessons for offline reading and later reference.
How is progress checked?
Each main section closes with a graded quiz (5 in total). The quizzes test understanding of the concepts and methods explained in the lessons rather than memorisation, and you can review the relevant lessons before attempting them.
Can I record this study for my own professional development?
Yes. The course notebook includes a self-assessment of the course objectives before and after study, a reflection page and a learning log, which you can use to keep your own record of professional development.
Level: Advanced
Duration: 20 hours
Related courses: A12 – Naval Architecture and Ship Production Technology (Part 3 of 4); A05 – Ship Structural Analysis Fundamentals; A03 – Introduction to Ship Structures Project; A10 – Naval Architecture and Ship Production Technology (Part 1 of 4)
Enrol
Study at your own pace and work through the full course material, worked examples and section quizzes. Enrol in A13 – Naval Architecture and Ship Production Technology (Part 4 of 4) →
