Before any finite element model is built or any scantling is approved, a structural engineer needs a clear mental picture of how a ship is loaded and how its structure responds. This course builds that picture from the ground up. It starts by classifying the loads a hull experiences, from steady still-water loading to slamming and impact, and shows how mismatches between weight and buoyancy create the shear forces and bending moments that act on the hull girder. It then introduces the vocabulary of ship structure, compares framing systems and single and double bottoms, and explains how primary, secondary and tertiary members share the load. The final part develops plate and stiffener analysis, including effective width, membrane action and the composite-beam method, so that you can carry out baseline structural checks and sanity-check more sophisticated results with sound engineering judgement.
Course at a glance: Duration 20 hours · Self-paced online · 6 sections, 25 lessons, a 86-page downloadable course book
What you will learn
- Classify ship structural loads by how they vary in time and by design category.
- Explain how hogging and sagging arise from the distribution of weight and buoyancy along the hull.
- Use the free-free beam model to construct and interpret load, shear and bending-moment curves.
- Convert itemised weight data into a continuous weight curve using standard approximation methods.
- Identify the main hull members and compare transverse, longitudinal and combined framing systems.
- Interpret primary, secondary and tertiary structural behaviour, including the role of the double bottom.
- Apply plate-bending, effective-breadth and composite-section concepts to check stiffeners and attached plating.
Inside the course: a high-level summary, section by section.
Structural loads
The course begins with the loads that drive every structural decision. Rather than presenting a long list, it organises them by how quickly they vary. Static loads, such as lightship weight and cargo in calm water, change little over time. Slowly varying loads follow the sea state as a ship meets waves, and are often treated as quasi-static by representing them as an equivalent pressure or buoyancy distribution. Rapidly varying loads, such as slamming, springing and impact, can excite vibration and dynamic response; slamming, for example, can lead to whipping of the hull girder. Recognising the rate of change is what tells the engineer which type of analysis is appropriate.
Loads are also grouped by design purpose. The course introduces the categories used in practice, including deck live loads, weather loads such as wind and ice, tank loads checked in their worst filling condition, and the operational and combat loads relevant to naval vessels. It then explains the classic global responses of hogging and sagging: when buoyancy exceeds weight amidships the hull hogs, and when weight exceeds buoyancy amidships it sags. A final lesson in this section contrasts static and dynamic, and deterministic and probabilistic, approaches to response analysis, and explains why structures are usually designed to remain in the linear elastic range even though both loads and strength carry uncertainty, while recognising that slender members may still be vulnerable to buckling.
Hull-girder response

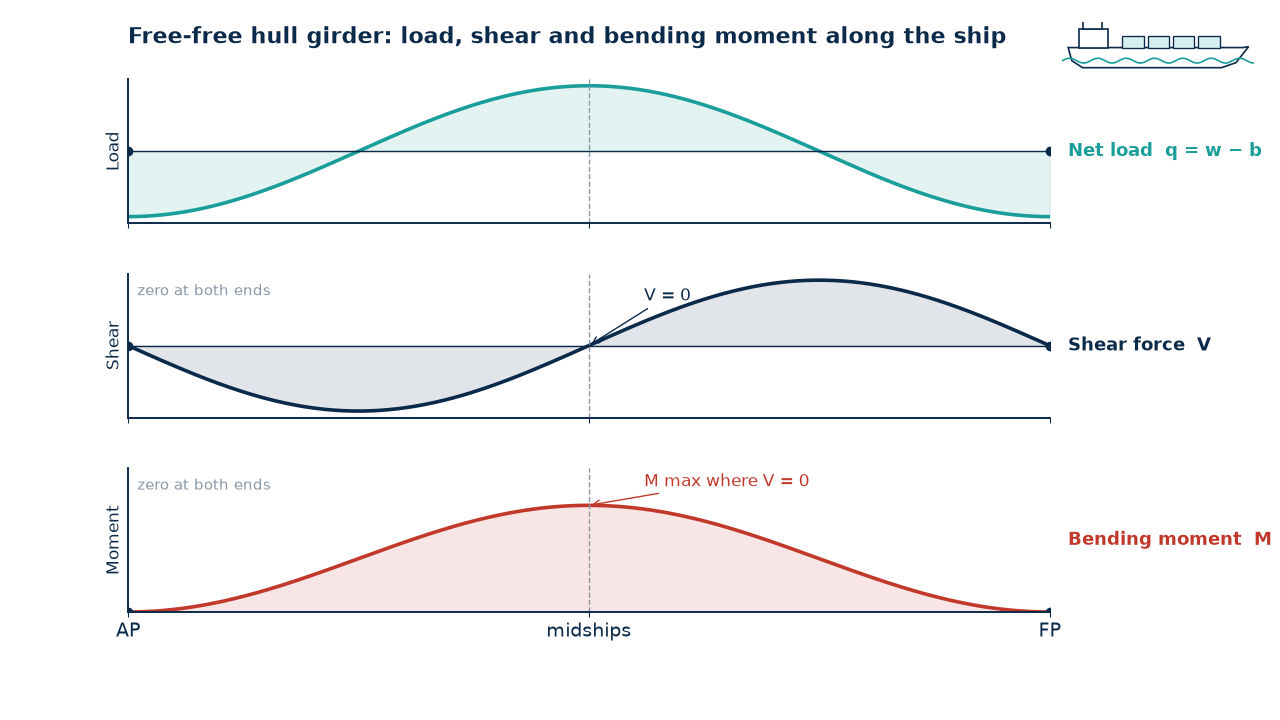

The second section treats the hull as a beam floating freely in the water, the so-called free-free beam model. Because there are no external supports, shear force and bending moment must both be zero at the ends of the ship, and the course uses that boundary condition to build intuition for reading the curves. A point of zero net load corresponds to a turning point in the shear curve; a point of zero shear corresponds to a maximum or minimum in the bending moment; and an extremum in shear marks an inflection in the moment curve. Being able to read these relationships quickly is a valuable check on any calculation or software output.
Wave conditions are introduced next, including the cases that place a crest amidships or at the ends, and the shape of trochoidal waves with steep crests and flatter troughs. The course explains how each case changes deck and bottom stress, and why many vessels, particularly warships, tend to sag in still water. Building the weight curve is the other half of the problem. The starting point is a list of individual weights, steelwork, machinery, outfit, ballast, fresh water and cargo, each located by its own longitudinal centre of gravity. Techniques including the distinct-item, trapezoidal, Biles and parabolic methods convert that list into a continuous weight distribution. Worked response cases, based on realistic cargo-ship loading data, show how the weight and buoyancy curves combine into shear and bending moments and lead to a deck stress check.
Ship structural components
The third section explains why ship structures differ from land structures. A ship’s structure faces constantly changing loads, corrosion and fatigue, and is normally analysed as a grillage of stiffened plating rather than as separate beams and columns. A core vocabulary of hull members, including shell plating, decks, bulkheads, keel, floors, girders, frames and longitudinals, helps you read any structural drawing.
The course then compares the three major framing systems: transverse framing, longitudinal framing and combined systems. Each places stiffening in a different direction and suits different ship types and loadings. Single and double bottoms are discussed in the same practical spirit. A double bottom provides tank capacity without using cargo space and adds resistance to bottom damage, but it is more expensive to build and maintain and lowers the neutral axis of the hull section. That shift can increase deck stresses under hull-girder bending, so added bottom strength is not automatically a net gain in every design. This is a good example of the systems thinking the course encourages.
Plate and stiffener analysis
The final technical section moves to local structure. A rectangular plate does not behave like a row of independent beams: neighbouring material prevents sideways contraction and the load is carried in two directions, making a plate stiffer than a set of equivalent beam strips. Where a beam is governed by its flexural rigidity, a plate is governed by its plate rigidity, and this matters most for tertiary behaviour, where plating carries local pressure between stiffeners. The course reviews standard plate cases and boundary conditions and explains the limits of small-deflection plate theory. Once deflections approach the plate thickness, membrane action begins to stiffen the response, but this is treated as nonlinear behaviour rather than a free reserve of strength.

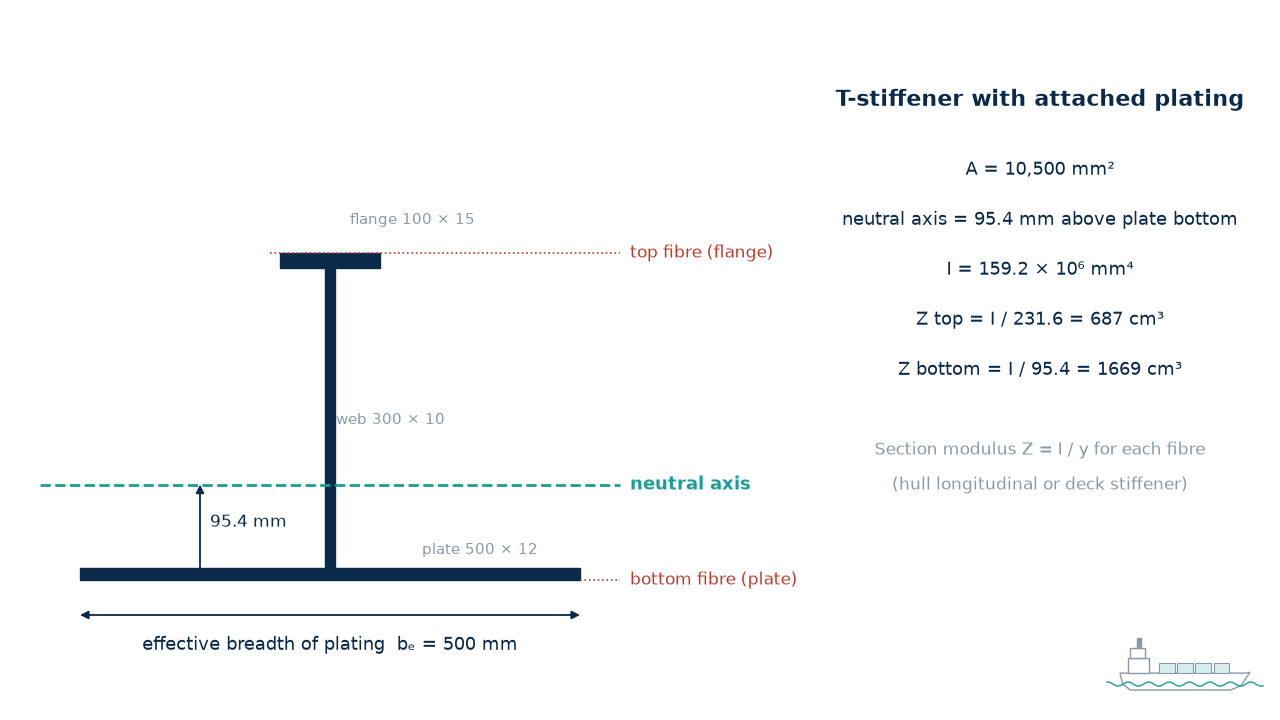

Effective breadth and effective width describe how much of the attached plating actually works with a stiffener. Because of shear lag, stress is not uniform across a wide flange, so the effective moment of inertia is reduced. The composite-beam method then brings plate and stiffener together: locate the neutral axis of the combined section, calculate its moment of inertia and section moduli, and check stresses at the governing fibre. Because composite sections are rarely symmetric, the top and bottom fibres give different results, and the course stresses always checking the side that governs. T and L stiffeners are covered as the most common practical cases, and a short analysis-brief assignment asks you to apply the method in a structured way.
Key takeaways
The course draws together loads, global response, structural arrangement and local strength into one consistent picture. You leave able to classify loads, read hull-girder shear and bending curves, describe a ship’s structural system and perform baseline plate and stiffener checks, with the engineering judgement to recognise when more detailed analysis is needed.
How you study
The course is delivered fully online and is self-paced, so you can fit roughly 20 hours of study around professional commitments. Lessons combine clear explanation with examples, diagrams and short interactive checks, and the main sections end with graded quizzes (4 in total) so you can confirm you can apply each method before moving on. A 86-page course book can be downloaded and printed for offline reading and later reference.
Course contents
- Structural Loads: Load Categories; Design Load Groups; Hogging and Sagging; Response Analysis
- Hull-Girder Response: Free-Free Beam Model; Reading the Curves; Wave Conditions; Weight-Curve Methods; Worked Response Cases
- Ship Structural Components: Why Ships Differ; Structural Vocabulary; Framing Systems; Single and Double Bottoms
- Plate and Stiffener Analysis: Plate vs Beam Action; Plate Cases; Membrane and Effective Width; Composite Beam Method; T and L Stiffeners; Assignment: Analysis Brief
- Summary: Key Takeaways
Who this course is for
This course is for engineering graduates and practising engineers who want a solid foundation or refresher in ship structural analysis, including structural, mechanical and civil engineers moving into marine work, junior naval architects, and surveyors or inspectors who review structural calculations. It also prepares learners for advanced study in finite element analysis and structural design. Familiarity with statics, beam bending and section properties is assumed.
Frequently asked questions
How long does Ship Structural Analysis Fundamentals take?
The course is designed for about 20 hours of study. It is self-paced and fully online, so you can spread it over a few weeks or complete it more quickly.
What is covered?
The course is organised into 6 sections with 25 lessons, moving from foundations to applied methods, as summarised above.
Is there material to keep after the course?

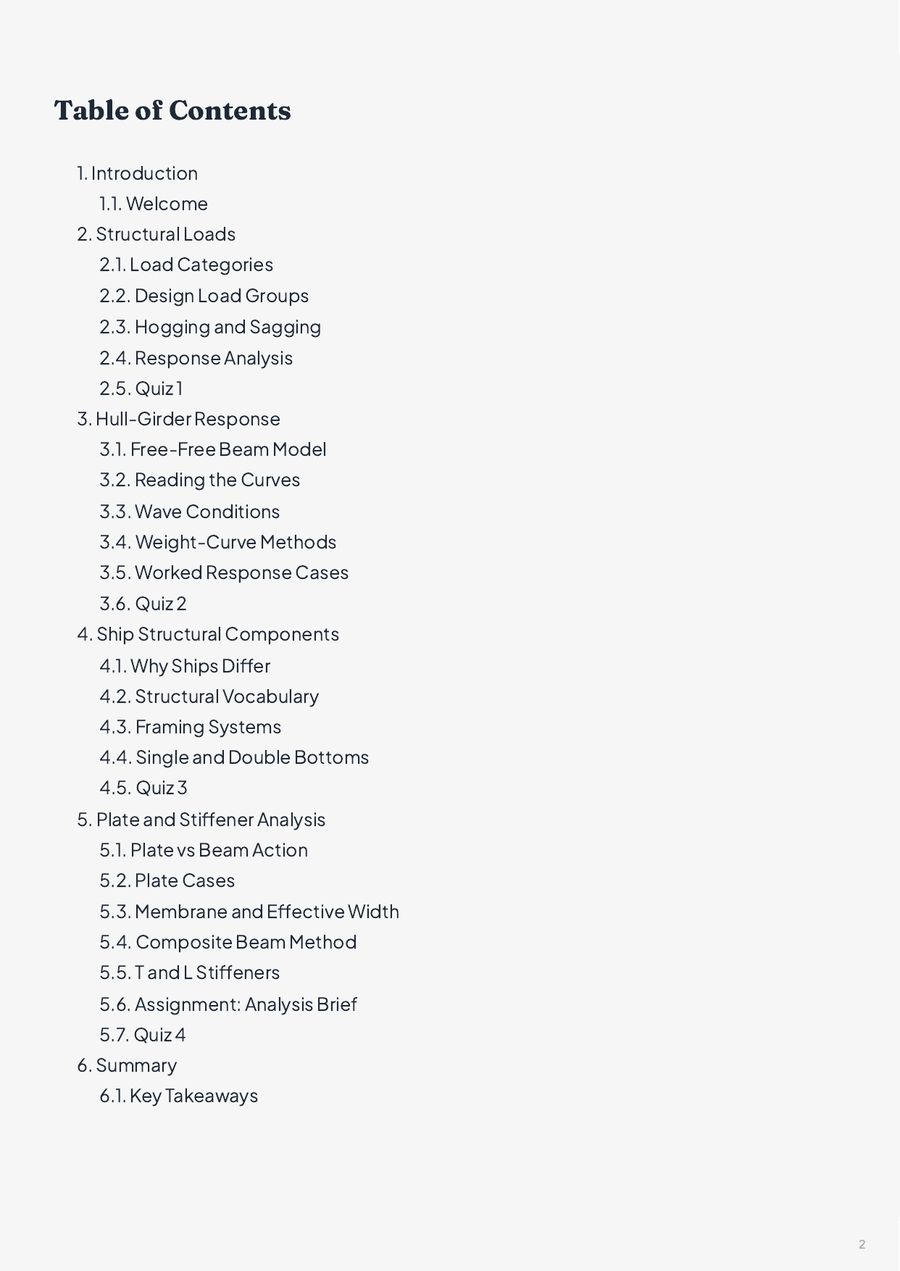

Yes. A downloadable 86-page course book accompanies the lessons for offline reading and later reference.
How is progress checked?
Each main section closes with a graded quiz (4 in total). The quizzes test understanding of the concepts and methods explained in the lessons rather than memorisation, and you can review the relevant lessons before attempting them.
Can I record this study for my own professional development?
Yes. The course notebook includes a self-assessment of the course objectives before and after study, a reflection page and a learning log, which you can use to keep your own record of professional development.
