A07 – Feasibility to Preliminary Naval Ship Design

This online course from Oceans Technology Higher Education is designed for about 20 hours of study. Its main sections are Design Sequence and Deliverables; Mission and Parametrics; Dimensions and Hydrostatics; Stability Assessment; Structures and Materials, with worked examples and graded section quizzes. It suits engineering graduates and practising engineers who want a structured refresher or self-study CPD in ship design, and anyone moving into this specialist area of marine and offshore work.

Duration 20 hours · Online · 7 sections, 26 lessons, a 89-page downloadable course book · Intermediate level · Can be recorded as self-directed CPD (not a validated professional qualification)

View on our learning platform

Pay securely by debit or credit card, or PayPal. No PayPal account needed.

Course Content

7 sections · 26 lessons · 20h

1. Introduction 1 lesson
  • 1.1 Welcome
2. Design Sequence and Deliverables 4 lessons
  • 2.1 Why the Sequence Exists
  • 2.2 Individual and Team Briefs
  • 2.3 Design Deliverables
  • 2.4 Quiz 1
3. Mission and Parametrics 5 lessons
  • 3.1 Mission Statements in Practice
  • 3.2 Building Design Lanes
  • 3.3 Comparing Isis and Rosamunda
  • 3.4 Mission Statement Exercise
  • 3.5 Quiz 2
4. Dimensions and Hydrostatics 6 lessons
  • 4.1 Reading Principal Dimensions
  • 4.2 Weights and Centers
  • 4.3 Hydrostatic Reasonableness Checks
  • 4.4 Ratio and Weight Worked Examples
  • 4.5 Data Debugging Exercise
  • 4.6 Quiz 3
5. Stability Assessment 5 lessons
  • 5.1 Reading the GZ Curve
  • 5.2 Cross Curves and Mismatches
  • 5.3 Dynamic Stability and Section Area
  • 5.4 Stability Worked Examples
  • 5.5 Quiz 4
6. Structures and Materials 4 lessons
  • 6.1 Rule-Based Scantlings
  • 6.2 Longitudinal Strength Logic
  • 6.3 Professional Design Judgments
  • 6.4 Quiz 5
7. Summary 1 lesson
  • 7.1 Key Takeaways

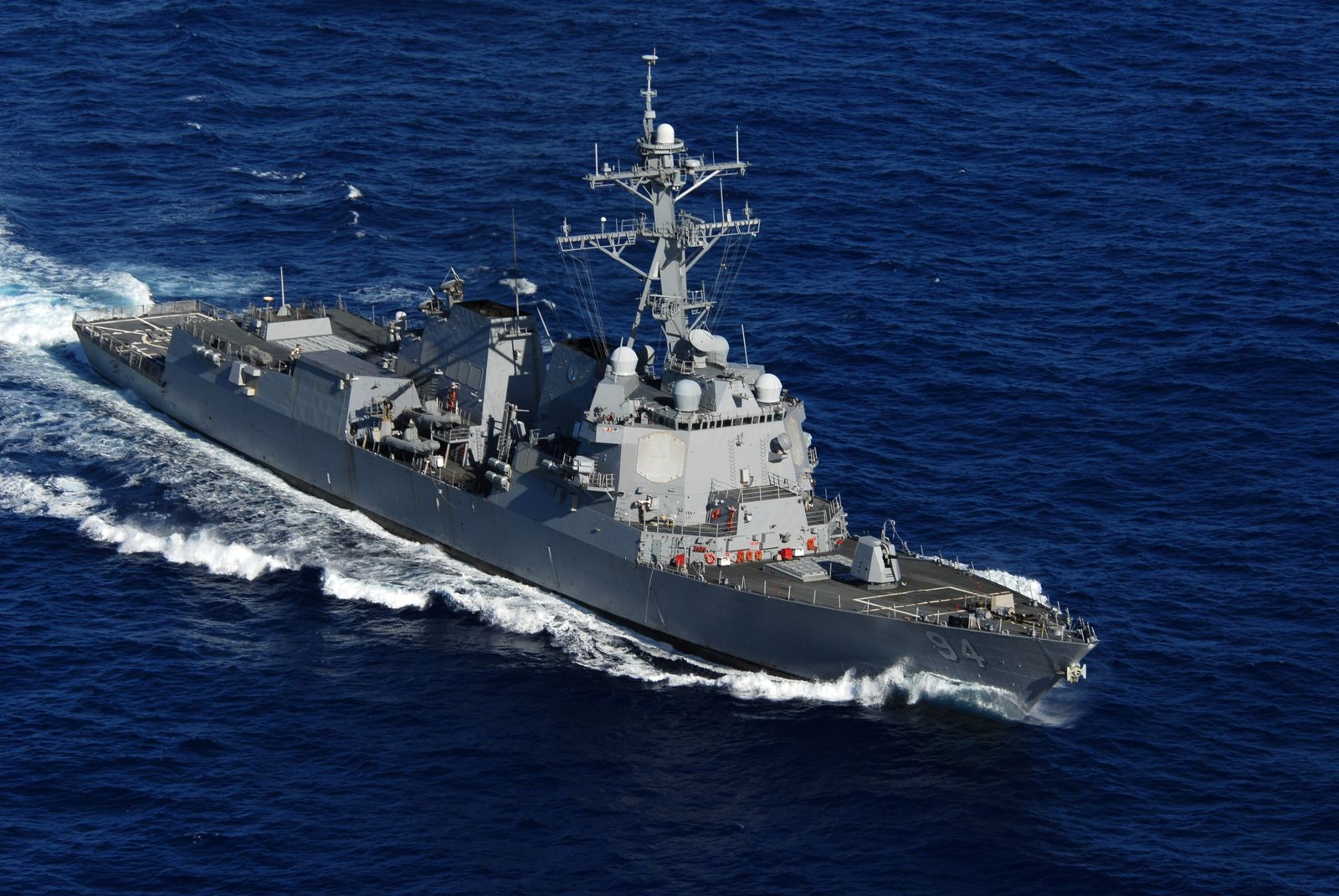

The guided-missile destroyer USS Nitze under way in the Atlantic, 2011
Photo: U.S. Navy, public domain, via Wikimedia Commons — source https://commons.wikimedia.org/wiki/File:US_Navy_110423-N-ZI300-120_The_guided-missile_destroyer_USS_Nitze_(DDG_94)_is_underway_during_the_Atlantic_phase_of_UNITAS_52.jpg

This online course from Oceans Technology Higher Education is designed for about 20 hours of study. Its main sections are Design Sequence and Deliverables; Mission and Parametrics; Dimensions and Hydrostatics; Stability Assessment; Structures and Materials, with worked examples and graded section quizzes. It suits engineering graduates and practising engineers who want a structured refresher or self-study CPD in ship design, and anyone moving into this specialist area of marine and offshore work.

Good ships start as well-reasoned concepts, and the step from a first idea to a credible preliminary design is where many of the most important decisions are made. This course guides you through that feasibility-to-preliminary design process as practised in naval architecture education and the design office. Drawing on real course policies, design briefs, grading checklists and authentic student design projects, it shows why the design sequence exists, how a mission statement and parametric analysis shape a concept, and how principal dimensions, weights and hydrostatics are tested for internal consistency. It then explores stability assessment through GZ and cross curves, and structural design through rule-based scantlings and longitudinal strength logic, before closing with the professional judgement needed to assemble a design package that will stand up to review.

Course at a glance: Duration 20 hours · Online · 7 sections, 24 lessons, a 89-page downloadable course book

What you will learn

  • Explain the role of feasibility and preliminary design within the wider ship design process.
  • Write a mission statement that genuinely steers hull form, arrangement, structure and ballast decisions.
  • Build a parametric basis for a new concept using reference vessels and design lanes.
  • Interpret principal dimensions, weights and centres, and hydrostatic data to judge whether a design is reasonable.
  • Read GZ curves and cross curves, identify mismatches and assess dynamic stability.
  • Distinguish rule-based scantlings from designer's choices and identify which members contribute to longitudinal strength.
  • Organise a professional design submission that meets authentic review standards.

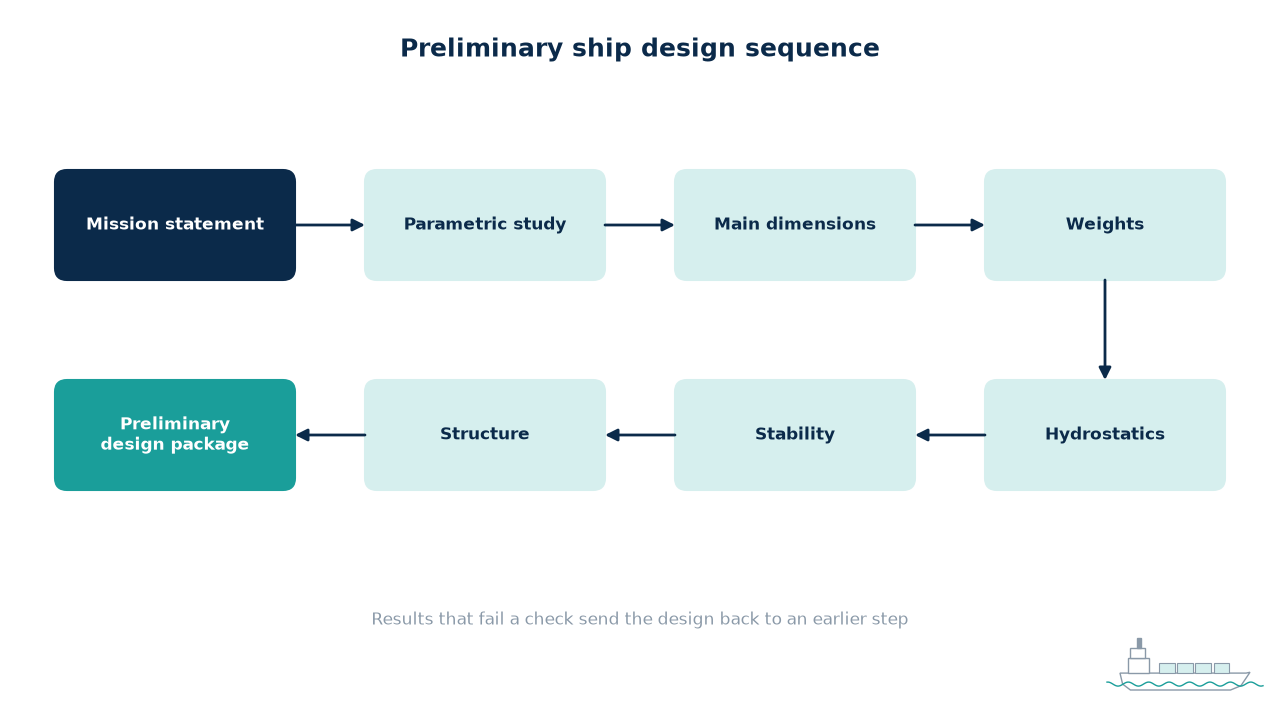

Ship design sequence from mission statement to preliminary design package

Diagram by Oceans Technology

Inside the course: a high-level summary, section by section.

Design sequence and deliverables

The course begins by explaining why ship design follows a sequence at all. Feasibility design asks whether a concept can meet its mission at all; preliminary design develops it to the point where dimensions, weights, stability and structure are consistent and can be reviewed by others. As the work progresses, three things change together: how complete the design is, who it is for, and what kind of deliverable is expected. Understanding those shifts helps a designer move from guided concept building to producing a package fit for professional review.

The section uses authentic briefs to show what that package looks like. Individual and team assignments, formatting standards for drawings and reports, rules on citing reused spreadsheets and tools, and the criteria used to judge designs all reveal that presentation is part of the professional standard, not an afterthought. Judged awards are discussed in terms of what they reward, such as technical competence and the overall quality of the design reasoning.

Mission and parametrics

The heart of early-stage design is the mission statement. It is not a marketing slogan but the filter that shapes every downstream choice, from hull form and rig to ballast, structure and arrangement. The course shows how to write one that is specific enough to guide decisions and how to translate it into a parametric basis for the design.

Parametric analysis uses data from comparable vessels to establish realistic ranges for key ratios and dimensions. You learn to build design lanes, select reference vessels close to your concept and use them to refine early estimates. A detailed comparison of two real sail training vessel designs illustrates how different missions lead to different proportions, overhangs and ratios, and why the numbers only make sense when read alongside the mission they serve. A mission-statement exercise lets you apply the method to your own concept.

Principal dimensions, weights and hydrostatics

Once a concept has numbers, the next task is to test whether those numbers are consistent. The course explains how to read a table of principal dimensions and what each ratio implies for performance and capability. It then examines weights and centres across loading conditions. A key insight is that the heaviest condition is not always the worst for stability: as fuel and water are consumed, the vertical centre of gravity can rise, so the burnt-out or light condition may govern.

Hydrostatic reasonableness checks bring these strands together. Indicators such as capsize screening factors, motion comfort ratios, hull speed relative to waterline length and ballast ratio should all look plausible for the intended use. When one value looks odd while the others look normal, that is often the clue to a data or calculation error. A data-debugging exercise builds the habit of interrogating design data rather than accepting totals at face value, a skill that is valuable in any design review.

Stability assessment

The stability section focuses on reading results in context. The GZ curve, which plots the righting arm against heel angle, shows the maximum righting arm, the angle at which it occurs and the angle of vanishing stability, beyond which the vessel will not recover. A strong offshore design should show both a substantial righting arm and a survivable range of heel.

Cross curves of stability, which present righting levers for a range of displacements, are introduced as the source data from which GZ curves are built. The course discusses how apparent contradictions between different stability outputs usually arise from differences in loading condition, units or normalisation, and how a reviewer should question and interpret them. Dynamic stability, represented by the area under the GZ curve, and the role of hull section shape complete the picture.

Annotated GZ curve showing maximum righting arm, angle of vanishing stability and dynamic stability area

Diagram by Oceans Technology
Inside the A07 Feasibility to Preliminary Naval Ship Design course book

Preview of the course book

Structural design

Structure is the final technical strand. Using a real design example, the course separates structural specification into two kinds of decision. Some are design choices made by the designer, such as the hull construction method and the material of the ballast keel. Others are rule-based scantlings, such as shell thickness, framing and fastening sizes, determined by classification rules. Recognising which is which clarifies where judgement is exercised and where compliance is demonstrated.

Longitudinal strength logic then explains which structural members contribute to hull-girder strength. Continuous longitudinal members such as the shear strake, deck and longitudinal bulkheads count, while discontinuous items such as stanchions do not. Understanding why helps designers estimate section modulus correctly and avoid over- or under-estimating hull strength.

Professional design judgements

The course closes by bringing technical results and professional practice together. Good preliminary designs are internally consistent, transparently documented and honest about their assumptions and uncertainties. You learn to present design decisions with their justification, cite tools and sources, and anticipate the questions a reviewer will ask. These judgements are what turn a collection of calculations into a design that others can trust and build on.

Why this matters in practice

Most of the cost and capability of a ship is fixed in the earliest design stages, when the least information is available. Errors made at feasibility, such as an unrealistic weight estimate, a misread stability curve or a mission statement that does not really constrain the design, propagate into every later stage and become expensive to correct. The habits taught in this course, including checking data for internal consistency, reading stability results in context and separating rule-based decisions from design choices, are exactly the habits that experienced reviewers look for. They apply equally to small craft, sail training vessels and larger naval or commercial ships, and they make a designer more effective when working with class societies, owners and colleagues in a design team.

Key takeaways

You leave with a clear understanding of the feasibility-to-preliminary design workflow: how a mission drives parametrics, how dimensions, weights and hydrostatics are checked for consistency, how stability and structure are assessed, and how the results are packaged for professional review.

How you study

The course is delivered fully online, so you can fit roughly 20 hours of study around professional commitments. Lessons combine clear explanation with examples, diagrams and short interactive checks, and the main sections end with graded quizzes (5 in total) so you can confirm you can apply each method before moving on. A 89-page course book can be downloaded and printed for offline reading and later reference.

Course contents

  • Design Sequence and Deliverables: Why the Sequence Exists; Individual and Team Briefs; Assessment and Awards
  • Mission and Parametrics: Mission Statements in Practice; Building Design Lanes; Comparing Isis and Rosamunda; Mission Statement Exercise
  • Dimensions and Hydrostatics: Reading Principal Dimensions; Weights and Centers; Hydrostatic Reasonableness Checks; Data Debugging Exercise
  • Stability Assessment: Reading the GZ Curve; Cross Curves and Mismatches; Dynamic Stability and Section Area
  • Structures and Materials: Rule-Based Scantlings; Longitudinal Strength Logic; Professional Design Judgments
  • Summary: Key Takeaways

Who this course is for

This course suits engineering graduates and practising engineers who are moving into ship or yacht design, or who want a structured refresher on early-stage design methodology. It is valuable for junior naval architects, design engineers in shipyards and consultancies, and engineers who review concept designs on behalf of owners or operators. Familiarity with basic hydrostatics and stability is helpful.

Using A07 as self-study CPD

A07 gives about 20 notional hours of structured, self-directed learning. A course book, a learning log and a reflection page help you keep evidence.

  • South Africa (ECSA, PrEng / PrTechEng): this course is not ECSA-validated. As a guide only, ECSA counts 1 CPD credit for every 10 notional hours, and its Category 1b covers self-study of non-validated material where you can show evidence of the activity. You may be able to claim it under ECSA’s current CPD rules. You are responsible for checking the rules and keeping your records.
  • UK (Engineering Council, CEng / IEng / EngTech): the Engineering Council sets no minimum CPD hours. Registrants plan, record and reflect on their CPD, and their institution may add its own rules. You can log A07 as self-directed learning, with your own reflection on what you applied.
  • Other countries: the course is fully online, so you can study it from anywhere with an internet connection, including India, the Middle East, Australia, the USA and elsewhere. It is not currently recognised or accredited by professional bodies in those countries. You may be able to record it as self-directed learning in your own CPD log; check your professional body’s rules and keep your own evidence.
  • Recognition: A07 is not currently recognised, accredited or endorsed by ECSA, IMarEST, RINA or any other professional body. Recognition by RINA and others is being pursued, and we will update this page if that changes.

Frequently asked questions

How long does Feasibility to Preliminary Naval Ship Design take?
The course is designed for about 20 hours of study. It is fully online, so you can spread it over a few weeks or complete it more quickly.

What is covered?
The course is organised into 7 sections with 24 lessons, moving from foundations to applied methods, as summarised above.

Is there material to keep after the course?
Yes. A downloadable 89-page course book accompanies the lessons for offline reading and later reference.

How is progress checked?
Each main section closes with a graded quiz (5 in total). The quizzes test understanding of the concepts and methods explained in the lessons rather than memorisation, and you can review the relevant lessons before attempting them.

Can I record this study for my own professional development?
Yes. The course notebook includes a self-assessment of the course objectives before and after study, a reflection page and a learning log, which you can use to keep your own record of professional development.

Which topics does A07 cover?
A07 – Feasibility to Preliminary Naval Ship Design covers: Design Sequence and Deliverables (Why the Sequence Exists; Individual and Team Briefs; Assessment and Awards). Mission and Parametrics (Mission Statements in Practice; Building Design Lanes; Comparing Isis and Rosamunda; Mission Statement Exercise). Dimensions and Hydrostatics (Reading Principal Dimensions; Weights and Centers; Hydrostatic Reasonableness Checks; Data Debugging Exercise). Stability Assessment (Reading the GZ Curve; Cross Curves and Mismatches; Dynamic Stability and Section Area). Structures and Materials (Rule-Based Scantlings; Longitudinal Strength Logic; Professional Design Judgments).

What will I be able to do after A07?
By the end of A07 you should be able to: Explain the role of feasibility and preliminary design within the wider ship design process. Write a mission statement that genuinely steers hull form, arrangement, structure and ballast decisions. Build a parametric basis for a new concept using reference vessels and design lanes. Interpret principal dimensions, weights and centres, and hydrostatic data to judge whether a design is reasonable.

Who is A07 for, and what background do I need?
This course suits engineering graduates and practising engineers who are moving into ship or yacht design, or who want a structured refresher on early-stage design methodology. It is valuable for junior naval architects, design engineers in shipyards and consultancies, and engineers who review concept designs on behalf of owners or operators. Familiarity with basic hydrostatics and stability is helpful.

Is A07 accredited, and can it count towards my CPD?
No. A07 – Feasibility to Preliminary Naval Ship Design is not currently accredited, validated or endorsed by ECSA, RINA, IMarEST or any other professional body; recognition by RINA and others is being pursued. As a guide only, ECSA counts 1 CPD credit per 10 notional hours, so about 20 hours of study may count towards your own CPD record as self-study. Check with your professional body.

Can I log A07 for CEng or IEng CPD?
You can record it as self-directed learning in your institution’s CPD record, with your own reflection. It is not recognised or endorsed by IMarEST, RINA or any other institution.

Can I study A07 from outside the UK?
Yes. A07 is delivered fully online, so you can study it from South Africa, India, the Middle East or anywhere else with an internet connection. The course book can be downloaded for offline reading.
