Piping systems in ships, offshore installations and process plants must carry pressure and weight safely while accommodating thermal growth, vibration, wind, surge and the movement of connected equipment. Getting this balance wrong leads to leaks, fatigue cracks, overloaded nozzles and damaged structures. This self-study course gives engineers a structured grounding in piping stress analysis, support design and thermal-expansion control. It starts with the coordinate systems used in stress models, classifies piping stresses and explains code-based allowable-stress logic for sustained, occasional and thermal cases. It then estimates key design loads, from pressure and weight to wind, relief-valve discharge, water hammer and restrained thermal expansion, before covering supports, restraints, spring hangers, expansion joints and reference data. Integrated case studies and a capstone design exercise tie the methods together.

Course at a glance: Duration 20 hours · Self-paced online · 9 sections, 39 lessons, a 150-page downloadable course book

What you will learn

  • Set up a consistent right-handed global coordinate system for a piping stress model.
  • Classify sustained, occasional and thermal expansion stresses and explain why they are checked differently.
  • Explain cold spring, self-springing, stress intensification and fatigue-based allowable stress ranges.
  • Estimate design loads from pressure, weight, wind, relief-valve discharge, water hammer and restrained thermal expansion.
  • Select anchors, guides, stops, sway braces, snubbers, rigid supports and spring supports to control movement.
  • Choose and install expansion joints, including pressure-balanced designs, and account for pressure thrust.
  • Evaluate integrated piping scenarios using code-informed stress, support and expansion reasoning.

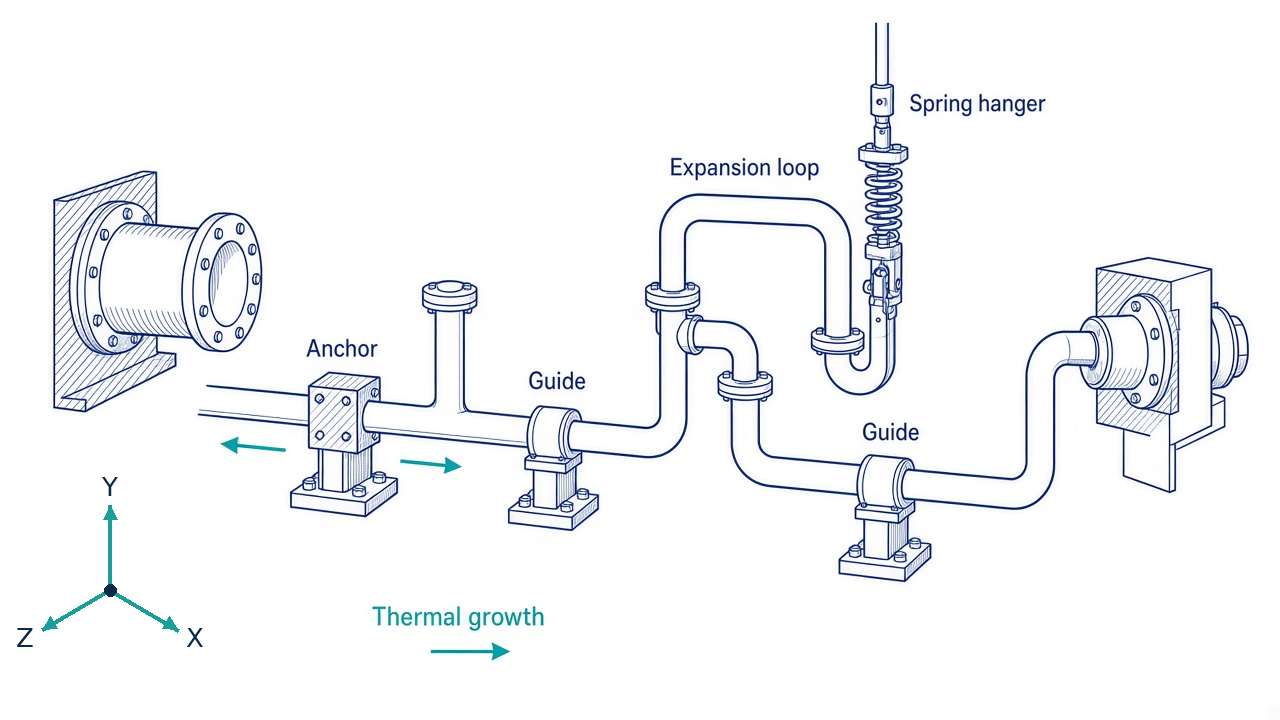

Isometric piping layout with coordinate axes, anchors, guides, spring hanger and expansion loop
Diagram by Oceans Technology

Inside the course: a high-level summary, section by section.

Coordinates and model setup

The course begins with something that is easy to overlook: the coordinate system. A piping stress model is only as reliable as its geometry, and a consistent right-handed global coordinate system ensures that displacements, forces, moments and support directions are interpreted correctly across the model, the drawings and the analysis reports. Clear conventions prevent errors when models are shared between disciplines or checked by others.

Stress categories and code checks

The second section introduces the categories of piping stress and why they are treated differently. Primary sustained stress comes from permanent mechanical loads such as weight and internal pressure. It is not self-limiting: if yield is exceeded across the full section, the pipe can deform grossly and rupture. Occasional stress arises from short-duration loads such as wind, earthquake or relief-valve discharge, and codes allow higher stresses for these because they act rarely. Thermal expansion stress is secondary and self-limiting: it arises because the pipe is restrained from expanding freely, and local yielding relieves it. Its main danger is fatigue under repeated heating and cooling cycles.

Cold spring, the deliberate pre-straining of a line during installation, and self-springing, where a system relaxes into a new shape after initial cycles, show why the exact hot and cold stresses are hard to predict and why codes focus on the stress range rather than absolute stress. Stress intensification factors account for the higher local stresses at bends, tees and other fittings. Fatigue-based allowables scale the permissible thermal stress range according to the expected number of cycles, and any unused margin in sustained stress can sometimes be added to the thermal allowable. Reactions at equipment nozzles and supports must also be checked. A worked example demonstrates how sustained, occasional and thermal checks are applied in sequence.

Design loads

The third section estimates the loads a piping system must resist. Pressure primarily governs wall stress, while weight, including pipe, contents and insulation, governs span, sag and support spacing. Wind loads act on exposed lines, and relief-valve discharge produces reaction forces that must be restrained.

Water hammer is treated in detail. When flow is stopped suddenly, for example by a fast-closing valve, a pressure wave travels along the pipe at a speed that depends on the bulk modulus and density of the fluid and the elasticity of the pipe wall. Dissolved or entrained gas can substantially reduce the wave speed, changing the predicted surge magnitude, so engineers must consider the real fluid condition. Thermal expansion loads arise when expansion is restrained; even modest temperature changes can generate very large forces in a fully restrained line, which is why flexibility is the preferred design approach. A design loads worked example combines these load types.

Supports and restraints

Pipe supports perform two different jobs: carrying weight and controlling movement. The course separates them by thinking in terms of degrees of freedom. Anchors restrain all movement and rotation at a point; guides allow axial movement while preventing lateral movement; and stops limit movement in one direction. Sway braces and snubbers control dynamic movements such as vibration or seismic loads, with snubbers allowing slow thermal movement but resisting rapid motion.

Rigid supports carry weight with no vertical flexibility and are suitable where vertical thermal movement is small. Where lines move vertically as they heat up, spring supports are used. Variable spring hangers carry load that changes with displacement, and the variation must be limited to avoid overloading equipment, while constant-load supports maintain nearly constant force over the travel range for sensitive locations. A worked example shows how to select support types and sizes for a given layout.

Piping stress categories: sustained, occasional and thermal expansion stress range
Diagram by Oceans Technology
Inside the B05 Piping Systems: Stress Analysis, Support and Expansion Design course book

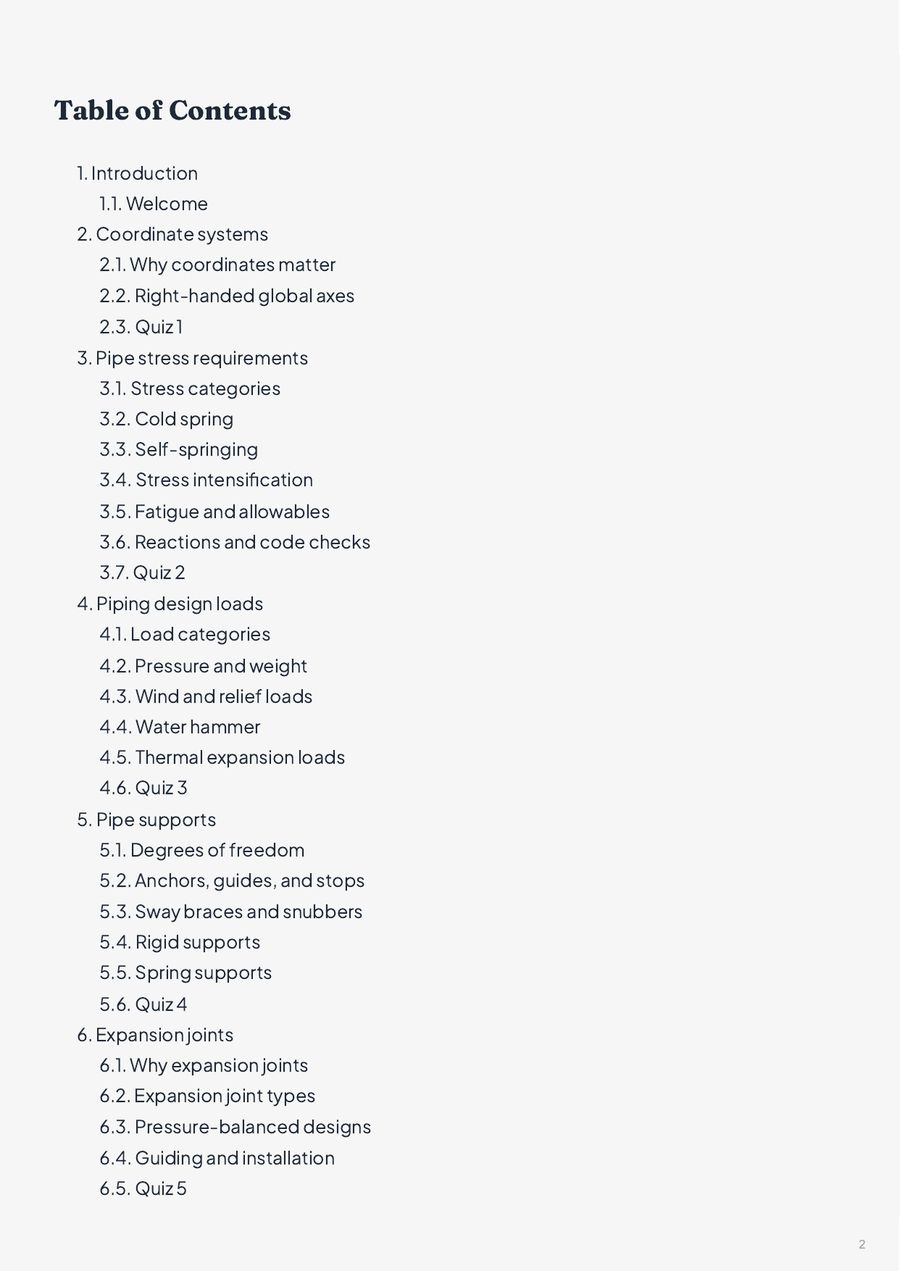

Preview of the course book

Expansion joints

When a layout cannot provide enough flexibility through loops and bends, expansion joints may be used. The course explains why they are needed and compares the main types, including axial, lateral and angular designs, with bellows or other flexible elements. A critical point is pressure thrust: an unrestrained bellows joint generates an axial force equal to the pressure acting on its effective area, which must be resisted by anchors or by the joint’s own tie rods. Pressure-balanced designs cancel this thrust and are valuable where anchors would be impractical. Guiding and installation requirements, including the spacing of guides to prevent buckling of the line, are explained, with a worked example of expansion joint thrust.

Reference data and case studies

Reference sections provide material property tables and pipe and steam data used in calculations, along with case data that supports the worked problems. The final technical section is built around integrated case studies. You learn how to identify governing loads, compare alternative layouts and restraint schemes, select supports using code-based reasoning and complete an integrated piping design capstone. These exercises reflect the way real piping problems combine several load types and design decisions at once.

Why this matters in practice

Piping failures are a frequent cause of downtime, leaks and safety incidents in marine and industrial plants. Many arise not from inadequate wall thickness but from poor flexibility, badly chosen supports or unanticipated loads such as water hammer. Engineers who understand the logic behind stress categories, load cases and support selection can design more robust systems, review stress analysis results critically and troubleshoot problems in service.

Key takeaways

You leave able to set up a piping stress model, classify and check stresses using code-based logic, estimate design loads, select supports and expansion joints, and apply integrated reasoning to realistic piping design problems.

How you study

The course is delivered fully online and is self-paced, so you can fit roughly 20 hours of study around professional commitments. Lessons combine clear explanation with examples, diagrams and short interactive checks, and the main sections end with graded quizzes (7 in total) so you can confirm you can apply each method before moving on. A 150-page course book can be downloaded and printed for offline reading and later reference.

Course contents

  • Coordinate systems: Why coordinates matter; Right-handed global axes
  • Pipe stress requirements: Stress categories; Cold spring; Self-springing; Stress intensification; Fatigue and allowables; Reactions and code checks
  • Piping design loads: Load categories; Pressure and weight; Wind and relief loads; Water hammer; Thermal expansion loads
  • Pipe supports: Degrees of freedom; Anchors, guides, and stops; Sway braces and snubbers; Rigid supports; Spring supports
  • Expansion joints: Why expansion joints; Expansion joint types; Pressure-balanced designs; Guiding and installation
  • Reference appendices: Material properties tables; Pipe and steam data
  • Exam case studies: Using the case studies; Integrated Load and Support Case Study; Governing Loads and Support Selection; Alternative Layout and Restraint Comparison; Code-Based Support Selection Case Study; Integrated Piping Design Capstone
  • Summary: Key Takeaways

Who this course is for

This course is for engineering graduates and practising mechanical, piping, marine and process engineers who design, analyse or review piping systems on ships, offshore installations or industrial plants. It also suits engineers preparing to use piping stress software who want a firm grasp of the principles behind it. Familiarity with basic mechanics of materials is assumed.

Frequently asked questions

How long does Piping Systems: Stress Analysis, Support and Expansion Design take?
The course is designed for about 20 hours of study. It is self-paced and fully online, so you can spread it over a few weeks or complete it more quickly.

What is covered?
The course is organised into 9 sections with 39 lessons, moving from foundations to applied methods, as summarised above.

Is there material to keep after the course?
Yes. A downloadable 150-page course book accompanies the lessons for offline reading and later reference.

How is progress checked?
Each main section closes with a graded quiz (7 in total). The quizzes test understanding of the concepts and methods explained in the lessons rather than memorisation, and you can review the relevant lessons before attempting them.

Can I record this study for my own professional development?
Yes. The course notebook includes a self-assessment of the course objectives before and after study, a reflection page and a learning log, which you can use to keep your own record of professional development.
